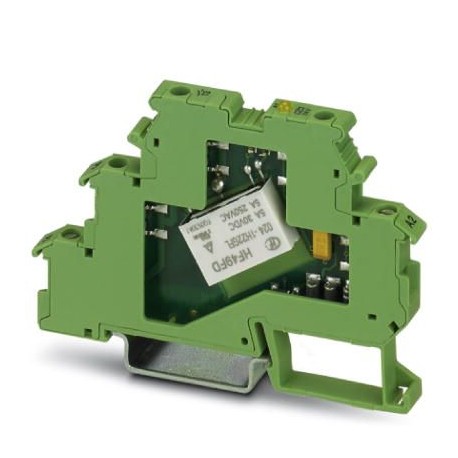

PHOENIX CONTACT DEK-REL-24/I/1 DEK-REL- 24/I/1 2940171 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DEK-REL- 24/I/1 2940171 PHOENIX CONTACT Relay Module

DEK-REL-24/I/1

2940171

PHOENIX CONTACT

1 Pcs.

Relay Module Borne-relay, with soldered miniature relays, contact (AgNi+Au): Small to medium powers, 1 open contact, input voltage 24 V AC/DC, for installation on NS 35/7.5, terminal width 6.2 mm

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2940171
Packing unit10 pc
Catalog pagePage 438 (C-5-2017)
GTIN4017918079895
Weight per Piece (excluding packing)19.000 g
Custom tariff number85364190
Country of originCN (China)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Coil side

Nominal input voltage UN24 V AC/DC
Input voltage range in reference to UN0.8 ... 1.1
Typical input current at UN6.5 mA
Typical response time5 ms
Typical release time15 ms
Protective circuitBridge rectifier Bridge rectifier
Operating voltage displayYellow LED
Power dissipation for nominal condition0.16 W

Contact side

Contact type1 N/O contact (double contact)
Type of switch contactDouble contact
Contact materialAgNi, hard gold-plated
Maximum switching voltage250 V AC
125 V DC
Minimum switching voltage0.1 V
Min. switching current1 mA
Maximum inrush current5 A
Limiting continuous current3 A (5 A up to 35°C at 24 V DC)
Interrupting rating (ohmic load) max.72 W (at 24 V DC)
60 W (at 48 V DC)
50 W (at 60 V DC)
50 W (at 110 V DC)
750 VA (for 250 V AC)
120 W (at 24 V DC - up to 35°)

General

Type of noteNote on application
NoteUse of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
Test voltage relay winding/relay contact2 kV AC (50 Hz, 1 min.)
Operating mode100% operating factor
Mechanical service lifeapprox. 2x 107cycles
Mounting positionany
Assembly instructionsIn rows with zero spacing
Net weight (SAP)19 g

Connection data input side

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Torque0.5 Nm

Connection data output side

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Torque0.5 Nm

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2940171 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 19.2 V
Rated control supply voltage AC 60 Hz (EF003979) 19.2 V
Rated control supply voltage DC (EF003980) 19.2 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 0
Type of switch contact (EF003358) Double contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Gold
Nominal current (EF000001) 0.0065 A
Width (EF000008) 6.2 mm
Height (EF000040) 80 mm
Depth (EF000049) 56 mm
