View larger
Images are for illustrative purposes only. Please refer to data sheet for details

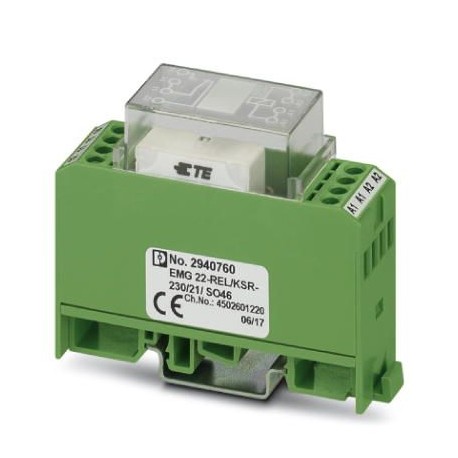

EMG 22-REL/KSR-230/21/ SO46 2940760 PHOENIX CONTACT Relay Module
EMG 22-REL/KSR-230/21/ SO46
2940760
PHOENIX CONTACT
10 Pcs.
Relay Module
Control-side interference interlay interface with soldered mini-switching relays, contacts (Au): Medium to large powers, 1 switched contacts, input voltage 230 V AC
Automation > Switching relay
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2940760 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 444 (C-5-2017) |
| GTIN | 4017918080228 |
| Weight per Piece (excluding packing) | 68.630 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 40 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Coil side
| Nominal input voltage UN | 230 V AC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Typical input current at UN | 18 mA |
| Typical response time | 10 ms |
| Typical release time | 8 ms |
| Protective circuit | Bridge rectifier Bridge rectifier |
| Surge protection Varistor | |
| RC element RC element | |
| Operating voltage display | Yellow LED |
| Power dissipation for nominal condition | 4.14 W |
Contact side
| Contact type | Single contact, 1-PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Maximum inrush current | 8 A |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 95 W (at 24 V DC) |
| 50 W (at 48 V DC) | |
| 45 W (at 60 V DC) | |
| 35 W (at 110 V DC) | |
| 55 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
|---|---|
| Mechanical service life | approx. 2x 107cycles |
| Mounting position | any |
| Net weight (SAP) | 68.63 g |
Connection data input side
| Connection name | Coil side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data output side
| Connection name | Contact side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| EN 50178 | |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Complete with socket (EF003359) | Yes |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 207 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 207 V |
| Voltage type for actuating (EF008242) | AC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Untreated |
| Nominal current (EF000001) | 0.018 A |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 75 mm |
| Depth (EF000049) | 62.5 mm |
