PHOENIX CONTACT PLC-2RSC-24DC/ 1 PLC-2RSC-24DC/ 1 2987309 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-2RSC-24DC/ 1 2987309 PHOENIX CONTACT Relay Module

PLC-2RSC-24DC/ 1

2987309

PHOENIX CONTACT

10 Pcs.

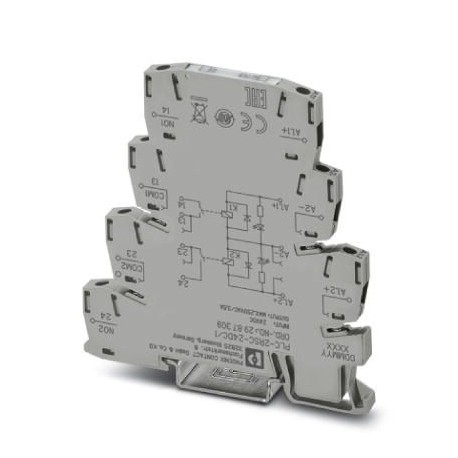

Relay Module PLC-INTERFACE with two independent relays, consisting of PLC-BSC.../21 base terminal block with screw connection and two integrated relays, power contact, for installation on NS 35/7.5 rail, 2 x 1 closing contact, input voltage 24 V DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2987309
Packing unit10 pc
Catalog pagePage 402 (C-5-2017)
GTIN4046356451215
Weight per Piece (excluding packing)34.000 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 60 °C

Coil side

Nominal input voltage UN24 V DC
Typical input current at UN7 mA
Typical response time4 ms
Typical release time6 ms
Protective circuitReverse polarity protection Polarity protection diode
Free-wheeling diode Damping diode
Operating voltage displayYellow LED
Power dissipation for nominal condition0.17 W

Contact side

Contact type2 N/O contacts (2 relays with 1 N/O contact)
Type of switch contactSingle contact
Note regarding the switch contact2x
Contact materialAgNi
Maximum switching voltage250 V AC
30 V DC
Minimum switching voltage24 V AC/DC
Min. switching current5 mA
Limiting continuous current3.5 A
Interrupting rating (ohmic load) max.84 W (at 24 V DC)
24 W (at 48 V DC)
24 W (at 60 V DC)
31 W (at 110 V DC)
46 W (at 220 V DC)
875 VA (for 250 V AC)

Connection data 1

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage relay winding/relay contact3 kV AC (50 Hz, 1 min.)
Test voltage relay contact/relay contact3 kV AC (50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionIP20 (Relay base)
Mechanical service life2x 107cycles
Mounting positionany
Assembly instructionsIn rows with zero spacing
Net weight (SAP)34 g

Standards and Regulations

DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsIEC 60664
EN 50178
Rated insulation voltage250 V AC
Rated surge voltage4 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2987309 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage DC (EF003980) 18 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 2
Number of contacts as change-over contact (EF008257) 0
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.007 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 6.2 mm
Height (EF000040) 80 mm
Depth (EF000049) 94 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
