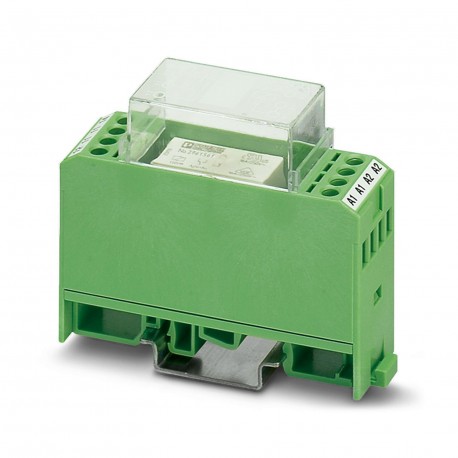

PHOENIX CONTACT EMG 22-REL/KSR-230/21/AU EMG 22-REL/KSR-230/21/AU 2949295 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMG 22-REL/KSR-230/21/AU 2949295 PHOENIX CONTACT Relay Module

EMG 22-REL/KSR-230/21/AU

2949295

PHOENIX CONTACT

10 Pcs.

Relay Module Relay module, with soldered mini-switching relay, contact (AgNi+Au): Small to large powers, 1 switched contacts, input voltage 230 V AC/DC Relay module, with soldered-in miniature switching relay, contact (AgNi+Au): small to large loads, 1 changeover contact, input voltage 230 V AC/DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Product properties
Product typeRelay Module
Product familyEMG
ApplicationUniversal
Operating mode100% operating factor
Mechanical service lifeapprox. 5x 107cycles
Data management status
Date of last data management02.05.2024
Article revision09
Insulation characteristics
InsulationBasic insulation
Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths
Overvoltage categoryIII
Pollution degree2
Electrical properties
Maximum power dissipation for nominal condition1.15 W
Test voltage (Winding/contact)5 kVrms(50 Hz, 1 min., winding/contact)
Rated insulation voltage260 V AC
Rated surge voltage4 kV
Input data
Coil side
Nominal input voltage UN230 V AC/DC
Input voltage range207 V AC/DC ... 243.8 V AC/DC (20 °C)
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN5 mA
Typical response time8 ms
Typical release time10 ms
Protective circuitBridge rectifier; Bridge rectifier
Varistor; Varistor
Operating voltage displayYellow LED
Output data
Switching
Contact switching type1 changeover contact
Type of switch contactSingle contact
Contact materialAgNi, hard gold-plated
Maximum switching voltage30 V AC
36 V DC
Limiting continuous current50 mA
Maximum inrush current50 mA
Interrupting rating (ohmic load) max.1.2 W (at 24 V DC)
Switching: when the gold layer is destroyed
Notethe following values are applicable if a gold layer is destroyed
Maximum switching voltage250 V AC/DC
Limiting continuous current6 A
Maximum inrush current8 A
Interrupting rating (ohmic load) max.144 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (at 110 V DC)
80 W (at 220 V DC)
1500 VA (for 250 V AC)
Connection data
Coil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Contact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Dimensions
Width22.5 mm
Height75 mm
Depth62.5 mm
Material specifications
Colorgreen (RAL 6021)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsIEC 60664-1
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2949295 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 207 V
Rated control supply voltage AC 60 Hz (EF003979) 207 V
Rated control supply voltage DC (EF003980) 207 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Gold
Nominal current (EF000001) 0.005 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 22.5 mm
Height (EF000040) 75 mm
Depth (EF000049) 62.5 mm
