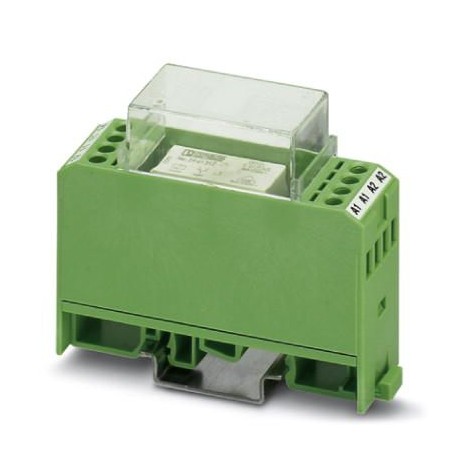

EMG 22-REL/KSR-230/21 2952855 PHOENIX CONTACT Relay Module

EMG 22-REL/KSR-230/21

2952855

PHOENIX CONTACT

10 Pcs.

Relay Module Relay module, with soldered mini-switching relay, contact (AgNi): Medium to high powers, 1 switched contact, input voltage 230 V AC/DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2952855
Packing unit10 pc
Catalog pagePage 135 (IF-2011)
GTIN4017918084493
Weight per Piece (excluding packing)63.330 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width22.5 mm
Height75 mm
Depth62.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Coil side

Nominal input voltage UN230 V AC/DC
Input voltage range in reference to UN0.9 ... 1.06
Typical input current at UN5 mA
Typical response time8 ms
Typical release time10 ms
Protective circuitBridge rectifier Bridge rectifier
Varistor Varistor
Operating voltage displayYellow LED
Power dissipation for nominal condition1.15 W

Contact side

Contact typeSingle contact, 1-PDT
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Maximum inrush current8 A
Limiting continuous current6 A
Interrupting rating (ohmic load) max.144 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (at 110 V DC)
80 W (at 220 V DC)
1500 VA (for 250 V AC)

General

Test voltage relay winding/relay contact5 kVrms(50 Hz, 1 min.)
Test voltage relay contact/relay contact1 kV AC (50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionIP20
Mechanical service lifeapprox. 5x 107cycles
Mounting positionany
Assembly instructionsIn rows with zero spacing
Net weight (SAP)63.33 g

Connection data input side

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data output side

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Standards/regulationsEN 50178
Rated insulation voltage260 V AC
Rated surge voltage4 kV
InsulationBasic insulation
Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2952855 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 207 V
Rated control supply voltage AC 60 Hz (EF003979) 207 V
Rated control supply voltage DC (EF003980) 207 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.005 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 22.5 mm
Height (EF000040) 75 mm
Depth (EF000049) 62.5 mm
