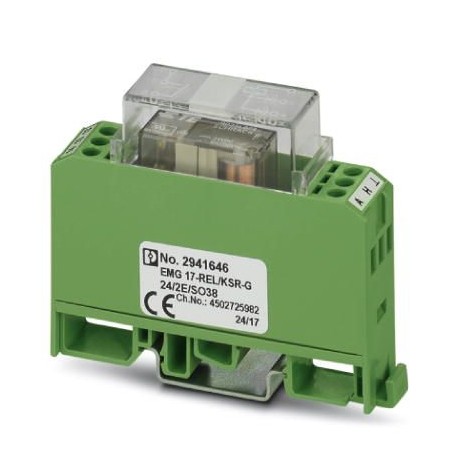

PHOENIX CONTACT EMG 17-REL/KSR-G 24/2E/SO38 EMG 17-REL/KSR-G 24/2E/SO38 2941646 PHOENIX CONTACT Functional block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMG 17-REL/KSR-G 24/2E/SO38 2941646 PHOENIX CONTACT Functional block

EMG 17-REL/KSR-G 24/2E/SO38

2941646

PHOENIX CONTACT

10 Pcs.

Functional block Relay module for high constant currents, with soldered relay, contacts (AgSnO): Medium to large powers, 1 open contact, input voltage 24 V DC, constant current limit 10 A, with 2 inputs for manual/automatic operation

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2941646
Packing unit10 pc
Catalog pagePage 447 (C-5-2017)
GTIN4017918080556
Weight per Piece (excluding packing)60.310 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width17.5 mm
Height75 mm
Depth62.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Coil side

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.9 ... 1.1
Typical input current at UN23 mA
Typical response time9 ms
Typical release time10 ms
Protective circuitFree-wheeling diode Damping diode
Reverse polarity protection Polarity protection diode
Operating voltage displayAutomatic: Yellow LED, Manual: Red LED
Power dissipation for nominal condition0.55 W

Contact side

Contact typeSingle contact, 1 N/O contact
Type of switch contactSingle contact
Contact materialAgSnO
Maximum switching voltage250 V AC/DC
Maximum inrush current120 A (20 ms)
Limiting continuous current10 A
Interrupting rating (ohmic load) max.240 W (at 24 V DC)
120 W (at 48 V DC)
85 W (at 60 V DC)
70 W (at 110 V DC)
90 W (at 220 V DC)
100 W (for 250 V DC)
2500 VA (for 250 V AC)
Interrupting rating (lamp load) max.on request

General

Test voltage relay winding/relay contact4 kV AC (50 Hz, 1 min.)
Operating mode100% operating factor
Mechanical service life3x 107cycles
Mounting positionany
Net weight (SAP)60.31 g

Connection data input side

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data output side

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Standards/regulationsIEC 60664
EN 50178
Insulationsafe isolation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2941646 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage DC (EF003980) 21.6 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 0
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.023 A
Width (EF000008) 17.5 mm
Height (EF000040) 75 mm
Depth (EF000049) 62.5 mm
