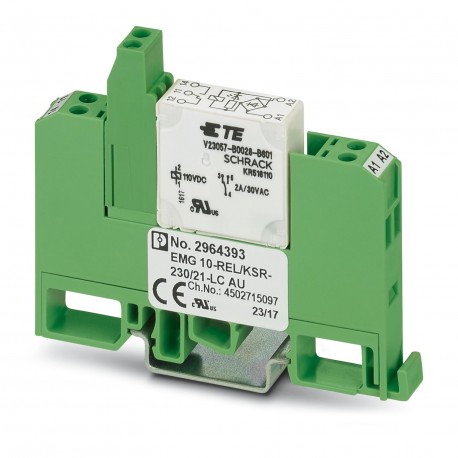

PHOENIX CONTACT EMG 10-REL/KSR-230/21-LC AU EMG 10-REL/KSR-230/21-LC AU 2964393 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMG 10-REL/KSR-230/21-LC AU 2964393 PHOENIX CONTACT Relay Module

EMG 10-REL/KSR-230/21-LC AU

2964393

PHOENIX CONTACT

10 Pcs.

Relay Module Relay module, with soldered mini-switching relay, gold contact for small powers, 1 switched contact, input voltage 230 V AC/DC Relay module, with soldered relay, gold-plated contact for small powers, 1 changeover contact, input voltage 230 V AC/DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2964393
Packing unit10 pc
Catalog pagePage 134 (IF-2011)
GTIN4017918107451
Weight per Piece (excluding packing)43.000 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width10.6 mm
Height75 mm
Depth62.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 40 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Coil side

Nominal input voltage UN230 V AC/DC
Input voltage range in reference to UN0.8 ... 1.1
Typical input current at UN5 mA
Typical response time7 ms
Typical release time11 ms
Protective circuitBridge rectifier Bridge rectifier
Surge protection Varistor
Operating voltage displayYellow LED
Power dissipation for nominal condition1.15 W

Contact side

Contact typeDouble contact, 1 PDT
Type of switch contactDouble contact
Contact materialAgPd60, hard gold-plated
Maximum switching voltage30 V AC
36 V DC
Maximum inrush current0.2 A
Limiting continuous current0.5 A
Interrupting rating (ohmic load) max.5 W (at 24 V DC)

Contact side (with destroyed gold layer)

Notethe following values are applicable if a gold layer is destroyed
Maximum switching voltage125 V AC
150 V DC
Limiting continuous current2 A
Maximum inrush current2 A
Interrupting rating (ohmic load) max.29 W (at 24 V DC)
29 W (at 48 V DC)
29 W (at 60 V DC)
60 VA (for 250 V AC)

General

Test voltage relay winding/relay contact4 kV AC (50 Hz, 1 min.)
Operating mode100% operating factor
Mechanical service lifeapprox. 2x 107cycles
Mounting positionany
Assembly instructionsIn rows with zero spacing
Net weight (SAP)43 g

Connection data input side

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data output side

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2964393 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 184 V
Rated control supply voltage AC 60 Hz (EF003979) 184 V
Rated control supply voltage DC (EF003980) 184 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of switch contact (EF003358) Double contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Gold
Nominal current (EF000001) 0.005 A
Width (EF000008) 10.6 mm
Height (EF000040) 75 mm
Depth (EF000049) 62.5 mm
