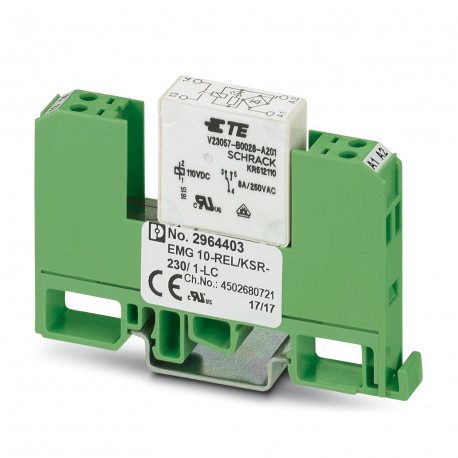

PHOENIX CONTACT EMG 10-REL/KSR-230/ 1-LC EMG 10-REL/KSR-230/ 1-LC 2964403 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMG 10-REL/KSR-230/ 1-LC 2964403 PHOENIX CONTACT Relay Module

EMG 10-REL/KSR-230/ 1-LC

2964403

PHOENIX CONTACT

10 Pcs.

Relay Module Relay module, with soldered mini-switching relay, contacts (AgNi): Medium to large powers, 1 open contact, input voltage 230 V AC/DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Product properties
Product typeRelay Module
Product familyEMG
ApplicationUniversal
Operating mode100% operating factor
Mechanical service lifeapprox. 2x 107cycles
Data management status
Date of last data management02.05.2024
Article revision10
Insulation characteristics
InsulationBasic insulation
Overvoltage categoryIII
Pollution degree2
Electrical properties
Maximum power dissipation for nominal condition1.1 W
Test voltage (Winding/contact)4 kV AC (50 Hz, 1 min., winding/contact)
Rated insulation voltage260 V AC
Rated surge voltage4 kV
Input data
Coil side
Nominal input voltage UN230 V AC/DC
Input voltage range184 V AC/DC ... 253 V AC/DC (20 °C)
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN4.8 mA
Typical response time7 ms
Typical release time11 ms
Protective circuitBridge rectifier; Bridge rectifier
Surge protection; Varistor
Operating voltage displayYellow LED
Output data
Switching
Contact switching type1 N/O contact
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V
Limiting continuous current6 A
Maximum inrush current8 A
Min. switching current100 mA
Interrupting rating (ohmic load) max.140 W (at 24 V DC)
60 W (at 48 V DC)
45 W (at 60 V DC)
35 W (at 110 V DC)
55 W (at 220 V DC)
1500 VA (for 250 V AC)
Connection data
Coil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Contact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Dimensions
Width10.6 mm
Height75 mm
Depth53.5 mm
Material specifications
Colorgreen (RAL 6021)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-20 °C ... 40 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsIEC 60664
EN 50178
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2964403 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 184 V
Rated control supply voltage AC 60 Hz (EF003979) 184 V
Rated control supply voltage DC (EF003980) 184 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 0
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.0048 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 10.6 mm
Height (EF000040) 75 mm
Depth (EF000049) 53.5 mm
