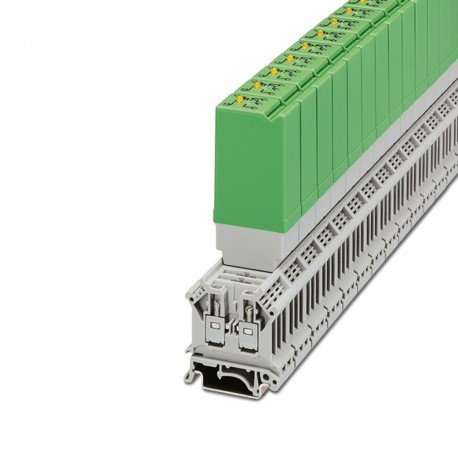

ST-REL3-KG230/21/AU/SO46 2826266 PHOENIX CONTACT Relay connectors
ST-REL3-KG230/21/AU/SO46
2826266
PHOENIX CONTACT
1 Pcs.
Relay connectors
Plug-in interference interface on the control side, with soldered mini-switching relays, contacts (Au): Small powers, 1 switched contact, input voltage 230 V AC
Pluggable relay interface with protection circuit on the control side, with soldered relays, contacts (Au): small powerful, 1 changeover contact, input voltage 230 V AC
Automation > Switching relay
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2826266 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 444 (C-5-2017) |
| GTIN | 4017918077877 |
| Weight per Piece (excluding packing) | 41.520 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Coil side
| Nominal input voltage UN | 230 V AC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Typical input current at UN | 18 mA |
| Typical response time | 10 ms |
| Typical release time | 8 ms |
| Protective circuit | Bridge rectifier Bridge rectifier |
| Surge protection Varistor | |
| Operating voltage display | yes |
| Power dissipation for nominal condition | 4.14 W |
Contact side
| Contact type | Double contact, 1 PDT |
|---|---|
| Type of switch contact | Double contact |
| Contact material | Au |
| Maximum switching voltage | 30 V AC |
| 36 V DC | |
| Maximum inrush current | 0.2 A |
| Limiting continuous current | 0.5 A |
| Interrupting rating (ohmic load) max. | 5 W (at 24 V DC) |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| EN 50178 | |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Complete with socket (EF003359) | No |
| With detachable clamps (EF003340) | Yes |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 207 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 207 V |
| Voltage type for actuating (EF008242) | AC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Type of switch contact (EF003358) | Double contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Gold |
| Nominal current (EF000001) | 0.018 A |
| Width (EF000008) | 20.8 mm |
| Height (EF000040) | 42.5 mm |
| Depth (EF000049) | 112 mm |
