PHOENIX CONTACT REL-MR-110DC/21-21/MS REL-MR-110DC/21-21/MS 1012698 PHOENIX CONTACT Single relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

REL-MR-110DC/21-21/MS 1012698 PHOENIX CONTACT Single relay

REL-MR-110DC/21-21/MS

1012698

PHOENIX CONTACT

10 Pcs.

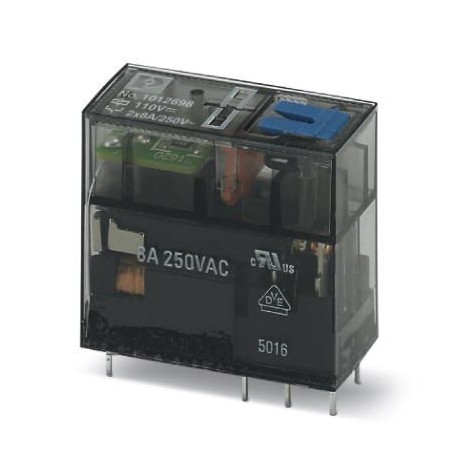

Single relay Plug-in miniature relay, with power contact, 2 switched contacts, check button, mechanical display of switching position, status LED, free-flowing diode, polarity A1+, A2, input voltage 110 V DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1012698
Packing unit10 pc
NoteMade to Order (non-returnable)
GTIN4055626490175
Weight per Piece (excluding packing)16.600 g
Custom tariff number85364900
Country of originDE (Germany)

Dimensions

Width12.7 mm
Height29 mm
Depth25 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN110 V DC
Input voltage range in reference to UNsee diagram
Typical input current at UN3.6 mA
Typical response time9 ms
Typical release time6 ms

Contact side

Contact type2 PDT
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V (at 10 mA)
Min. switching current10 mA (at 12 V)
Maximum inrush current16 A (20 ms)
Limiting continuous current8 A
Interrupting rating (ohmic load) max.2000 VA (for 250 V AC)
Switching capacity according to IEC 60947-5-11 A (at 24 V, DC13)
1.5 A (at 24 V, AC15)
1.5 A (at 120 V, AC15)
1.5 A (at 240 V, AC15)
Motor load according to UL 5081/4 HP, 120 V AC (N/O contact)
1/2 HP, 240 V AC (N/O contact)

General

Test voltage relay winding/relay contact5 kV AC (50 Hz, 1 min.)
Test voltage relay contact/relay contact5 kV AC (50 Hz, 1 min.)
Test voltage PDT/PDT5 kV AC
Mechanical service life5x 106cycles

Standards and Regulations

Standards/regulationsEN 61810-1
VDE 0435-201
EN 50178

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1012698 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) No
Rated control supply voltage DC (EF003980) 88 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarity free
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.0036 A
Width (EF000008) 12.7 mm
Height (EF000040) 29 mm
Depth (EF000049) 25 mm
