REL-IR4/24DC/4X21/EX

2909738

PHOENIX CONTACT

10 Pcs.

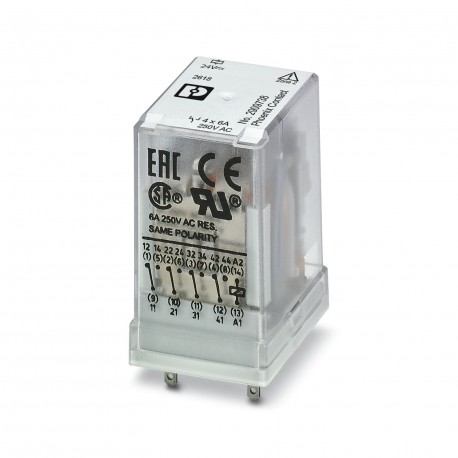

Single relay Plug-in industrial relay, RT III sealed with power contacts, 4 switched contacts, mechanical switching position indicator, polarity: no polarity, input voltage: 24 V DC in combination with RIF-2.../EX sockets approved according to ATEX/IECEx (zone 2) and Ex zone class I, div. 2.

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2909738
Packing unit10 pc
NoteMade to Order (non-returnable)
GTIN4055626379685
Weight per Piece (excluding packing)35.430 g
Custom tariff number85364190
Country of originPL (Poland)

Dimensions

Width21.2 mm
Height27.5 mm
Depth35.6 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN24 V DC
Input voltage range in reference to UNsee diagram
Typical input current at UN38 mA
Typical response time13 ms
Typical release time3 ms
Power dissipation for nominal condition0.91 W

Contact side

Contact type4 PDTs
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (At 24 mA)
Min. switching current5 mA (at 24 V)
Maximum inrush current16 A (20 ms, N/O contact)
12 A (4 s, 4 N/O contacts)
Limiting continuous current6 A
Interrupting rating (ohmic load) max.144 W (at 24 V DC)
124 W (at 48 V DC)
108 W (at 60 V DC)
52 W (at 110 V DC)
48 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity min.0.12 W
Switching capacity2 A (at 24 V, DC13)
1 A (at 230 V, AC15)
Switching capacity according to IEC 60947-5-12 A (at 24 V, DC13)
1 A (at 230 V, AC15)
Motor load according to UL 5081/3 HP, 240 V AC

General

Test voltage relay winding/relay contact2.5 kVrms(50 Hz, 1 min.)
Test voltage PDT/PDT2.5 kVrms(50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionRT III
Mechanical service life1x 107cycles, approximately
Mounting positionany

Standards and Regulations

Standards/regulationsIEC 60664
IEC 61810
Rated insulation voltage250 V AC
Rated surge voltage2.5 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2909738 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Plug-in connection
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) No
Rated control supply voltage DC (EF003980) 18.7 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarity free
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 4
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.038 A
Degree of protection (IP) (EF005474) Other
Width (EF000008) 21.2 mm
Height (EF000040) 27.5 mm
Depth (EF000049) 35.6 mm
