View larger
Images are for illustrative purposes only. Please refer to data sheet for details

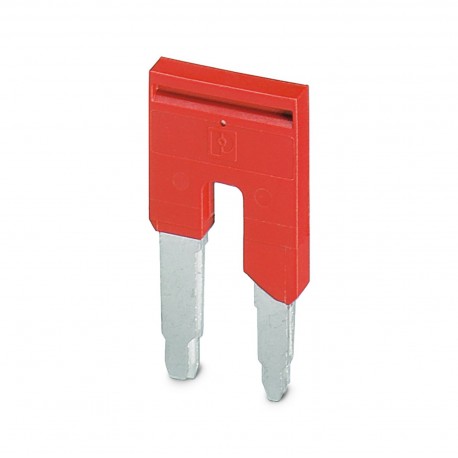

RB 35-16 3032169 PHOENIX CONTACT Reducing bridge
RB 35-16
3032169
PHOENIX CONTACT
10 Pcs.
Reducing bridge
Reduction bridge, pitch: 14 mm, colour: red
Reducing bridge, pitch: 14 mm, number of positions: 2, color: red
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Reducing bridge |
| Number of positions | 2 |
| Pitch | 14 mm |
| Data management status | |
| Article revision | 03 |
Electrical properties
| Maximum load current | 90 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Connection data
| Maximum load current | 90 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Dimensions
| Pitch | 14 mm |
Material specifications
| Color | red (RAL 3001) |
| Material | Copper |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | 125 °C |
Mounting
| Mounting type | Plug-in mounting |
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Pluggable |
| Modular spacing (EF000394) | 14 mm |
| Colour (EF000007) | Red |
