View larger
Images are for illustrative purposes only. Please refer to data sheet for details

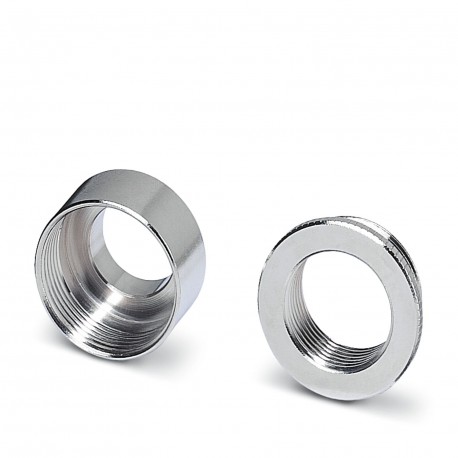

REDUC-M-KV-M40/M32 1647640 PHOENIX CONTACT Reducing adapter
REDUC-M-KV-M40/M32
1647640
PHOENIX CONTACT
10 Pcs.
Reducing adapter
Reduction adapter, material: Brass, nickel-plated, connection thread: M40 x 1.5, color: silver, with O-ring
Reduction adapter, connection thread: M40 x 1.5, color: silver, with O-ring
Cables > Enlargement/reducing ring
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1647640 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 708 (C-2-2017) |
| GTIN | 4017918941543 |
| Weight per Piece (excluding packing) | 45.630 g |
| Custom tariff number | 74153300 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 11.5 mm |
|---|---|
| Length without connecting thread | 3.5 mm |
| Connecting thread diameter | 40 mm |
| Hexagon angular dimension | 43 mm |
| Length of the connecting thread | 8 mm |
Ambient conditions
| Degree of protection (IP) | IP65 (Depends on the screw connection used) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 80 °C |
General
| Material | Brass, nickel-plated |
|---|---|
| Cable gland material | Nickel-plated brass |
| Outer thread | M40 |
| Internal thread | M32 |
| Torque | 11 Nm ... 12 Nm |
| Color | silver |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
