> PHOENIX CONTACT > Industrial plug-in connectors/interfaces > 1647637

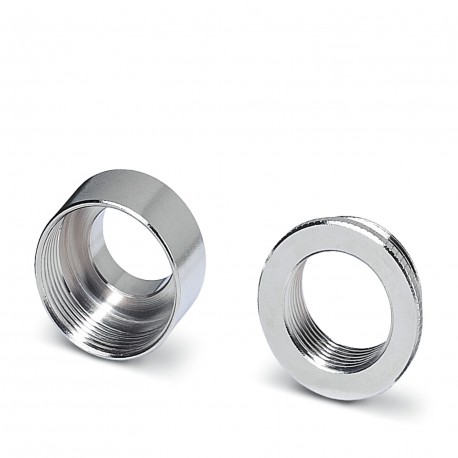

PHOENIX CONTACT REDUC-M-KV-M32/M25 REDUC-M-KV-M32/M25 1647637 PHOENIX CONTACT Reducing adapter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

REDUC-M-KV-M32/M25 1647637 PHOENIX CONTACT Reducing adapter

REDUC-M-KV-M32/M25

1647637

PHOENIX CONTACT

10 Pcs.

Reducing adapter Reduction adapter, material: Brass, nickel-plated, connection thread: M32 x 1.5, color: silver, with O-ring Reducing adapter, connecting thread: M32 x 1.5, color: silver, with O-ring

Cables > Enlargement/reducing ring
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeReducing adapter
Seal presentyes
Data management status
Article revision00
Connection data
Tightening torque11 ... 12 Nm
Dimensions
Dimensional drawingnosiuczybf.jpg
Width37.00 mm
Length11.5 mm
Length of the connecting thread8 mm
Length without connecting thread3.5 mm
Diameter32 mm
Connecting thread diameter32 mm
Hexagon angular dimension37 mm
Thread type connection sideM32 x 1.5
Thread pitch1.5 mm
Thread type on seal sideM25
Material specifications
ColorBrass color
MaterialBrass, nickel-plated
Seal materialNBR
Housing surface materialNi
Cable/line
Halogen-freeno
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65 (Depends on the screw connection used)
Ambient temperature (operation)-20 °C ... 80 °C
Mounting
Assembly noteWith corresponding screw connection: IP68
