View larger
Images are for illustrative purposes only. Please refer to data sheet for details

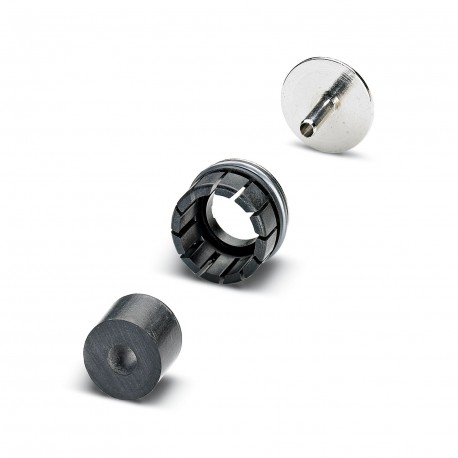

RC-Z2446 1604534 PHOENIX CONTACT Cable clamp type cage and shield adapter
RC-Z2446
1604534
PHOENIX CONTACT
10 Pcs.
Cable clamp type cage and shield adapter
Cable and display adapter attachment gasket, shielded: yes, stranded wire bundle diameter: 6.6 mm, cable diameter range: 6.5 mm ... 7.5 mm, Series: NC
Cable clamp type cage and shield adapter, shielded: yes, litz wire bundle diameter: 6.6 mm, cable diameter range: 6.5 mm ... 7.5 mm, series: NC, RC, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241806
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable clamp type cage |
| Series | NC |
| RC | |
| Type of the screw connection | EMC |
| Shielded | yes |
| Data management status | |
| Article revision | 01 |
Cable/line
| External cable diameter | 6.5 mm ... 7.5 mm |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | EMC |
| Feature Name | Feature Value |
|---|---|
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | Other |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
