View larger
Images are for illustrative purposes only. Please refer to data sheet for details

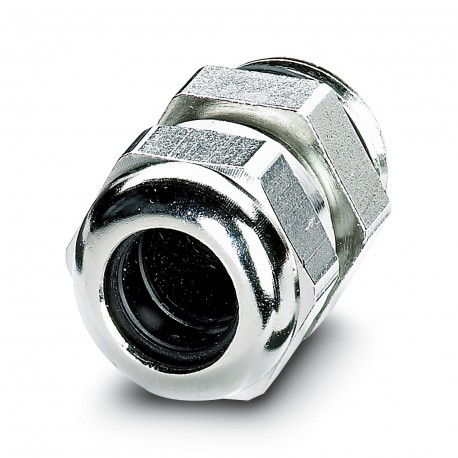

RC-Z2186 1604329 PHOENIX CONTACT Cable gland
RC-Z2186
1604329
PHOENIX CONTACT
20 Pcs.
Cable gland
Cable gland, shielded: no, protection index: IP68, cable diameter range: 4 mm ... 6mm, Series: RC
Cable gland, external cable diameter 4 mm ... 6 mm, shielding: no, connecting thread: Pg7, color: silver
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable screw gland |
| Shielded | no |
Dimensions
| Thread type connection side | Pg7 |
Cable/line
| External cable diameter | 4 mm ... 6 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP68 |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Suitable for cable diameter (EF005466) | 4 mm |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP68 |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
