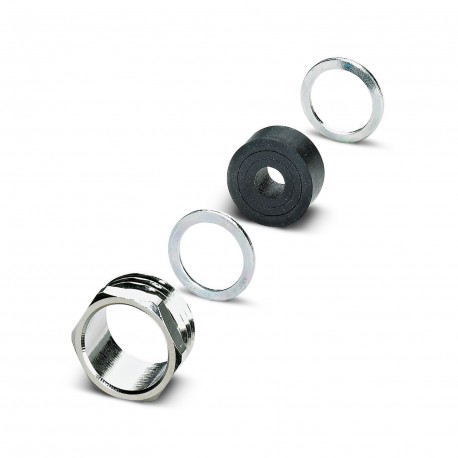

RC-Z2092 1604245 PHOENIX CONTACT Cable gland
RC-Z2092
1604245
PHOENIX CONTACT
20 Pcs.
Cable gland
Cable gland, shielded: no, cable diameter range: 8 mm... 12 mm, series: RC
Cable glands, screw connection material: Brass, nickel-plated, cable outer diameter 8 mm 12 mm, shielding: no, thread: Pg11, series: RC
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1604245 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356248266 |
| Weight per Piece (excluding packing) | 10.830 g |
| Custom tariff number | 74199990 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Suitable for cable diameter (EF005466) | 8 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP65 |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
