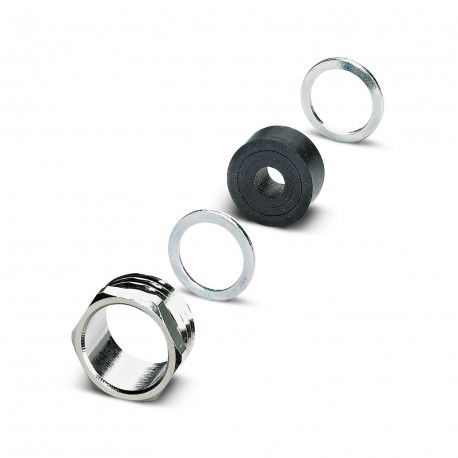

RC-Z2091 1604242 PHOENIX CONTACT Cable gland
RC-Z2091
1604242
PHOENIX CONTACT
20 Pcs.
Cable gland
Cable gland, shielded: no, cable diameter range: 6 mm... 10 mm, series: RC
Cable gland, material for screw connection: Brass, nickel-plated, external cable diameter 6 mm ... 10 mm, shielding: no, connecting thread: Pg9, series: RC
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable screw gland |
| Series | RC |
| Shielded | no |
| Data management status | |
| Article revision | 02 |
Dimensions
| Thread type connection side | Pg9 |
Material specifications
| Color | Brass color |
| Material for screw connection | Brass, nickel-plated |
Cable/line
| External cable diameter | 6 mm ... 10 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Suitable for cable diameter (EF005466) | 6 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP65 |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
