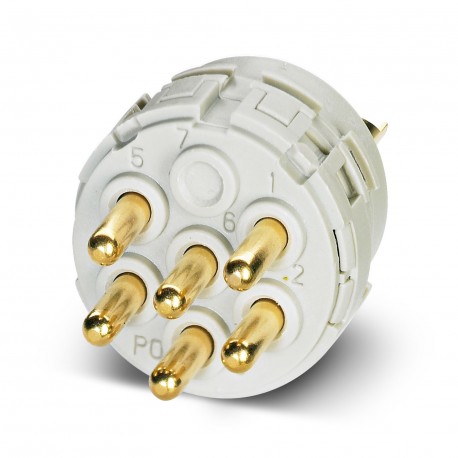

PHOENIX CONTACT RC-2RP1N120000 RC-2RP1N120000 1611638 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RC-2RP1N120000 1611638 PHOENIX CONTACT Contact insert

RC-2RP1N120000

1611638

PHOENIX CONTACT

10 Pcs.

Contact insert Contact insert, number of poles: 11+PE, contact type: Pin, Solder connection Contact insert, number of positions: 11+PE, contact connection type: Pin, Solder connection, series: RC

Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeContact insert
SeriesRC
ApplicationSignal
Number of positions12
Connection profile11+PE
CodingN
Electrical properties
Contact
Contact diameter1 mm
Min. cross section0.08 mm²
Max. cross section1 mm²
Max. current10 A
Nominal voltage UN48 V AC 74 V DC
Overvoltage categoryIII
Degree of pollution3
Rated surge voltage1.5 kV
Contact
Contact diameter1 mm
Min. cross section0.08 mm²
Max. cross section1 mm²
Max. current8 A
Connection data
Connection methodSolder connection
Connector
Direction of rotationStandard
