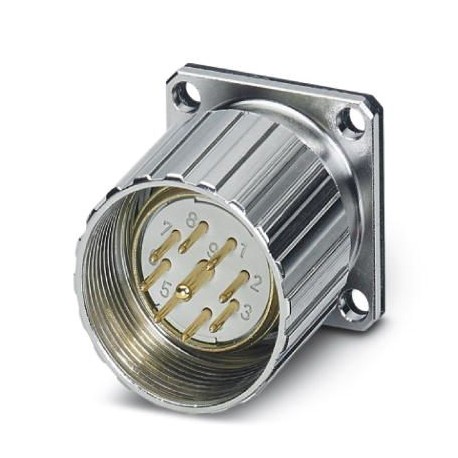

RC-09P1N12Y300 1595336 PHOENIX CONTACT M23, Plug-in connector for front wall appliances with knurled nut, se..

RC-09P1N12Y300

1595336

PHOENIX CONTACT

1 Pcs.

M23, Plug-in connector for front wall appliances with knurled nut, series: RC, straight, shielded: no, Screw lock, No. of poles: 8+1, Direction of rotation: Standard, contact connection type: Male, Solder cup, Flat joint, coding: N, this item is expected to be lead-free from the second quarter of 2026 in accordance with RoHS II without exception 6c (Pb <0.1%), a lead-free alternative is previously available upon request M23, Plug-in connector for front wall appliances with knurled nut, series: RC, straight, shielded: no, Screw lock, No. of poles: 8+1, Direction of rotation: Standard, contact connection type: Male, Solder cup, Flat joint, 4x Ø 3.2, coding: N

Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1595336
Packing unit1
GTIN4046356206112
Custom tariff number85366990

Data of the insulating body

CodingN
Insertion/withdrawal cycles mechanical50
Contact connection methodSolder connection
Type of contactsPin
ApplicationSignal
Number of positions9
Contact diameter of power contacts2 mm
Litz wire cross section of power contacts min.0.08 mm²
Litz wire cross section of power contacts max.2.5 mm²
Nominal current per power contact at 25°C20 A
Nominal voltage, power contact300 V
Rated surge voltage2.5 kV
Overvoltage categoryII
Degree of pollution3
Contact diameter of signal contacts1 mm
Litz wire cross section of signal contacts min.0.08 mm²
Litz wire cross section of signal contacts max.1 mm²
Nominal current per signal contact at 25°C8 A
Nominal voltage, signal contact300 V
Rated surge voltage2.5 kV
Overvoltage categoryII
Degree of pollution3

Housing data

Degree of protection (when plugged in)IP67

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1595336 Connectors (EC002635)
Feature Name Feature Value
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Type of locking (EF000208) Other
With protective conductor (EF007468) No
Screened (EF000881) No
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
