View larger
Images are for illustrative purposes only. Please refer to data sheet for details

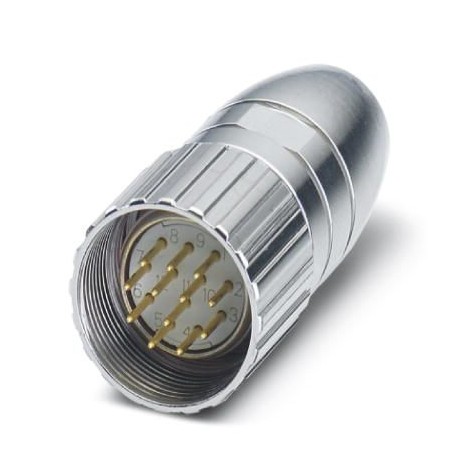

RC-07P1NS28007 1616848 PHOENIX CONTACT Cable connector
RC-07P1NS28007
1616848
PHOENIX CONTACT
1 Pcs.
Cable connector
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Data of the insulating body
| Coding | N |
|---|---|
| Insertion/withdrawal cycles mechanical | 50 |
| Contact connection method | Screw connection |
| Type of contacts | Pin |
| Application | Signal |
| Number of positions | 7 |
| Contact diameter of power contacts | 2 mm |
| Nominal current per power contact at 25°C | 20 A |
| Nominal voltage, power contact | 150 V |
| Rated surge voltage | 2.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Overvoltage category | II |
| Degree of pollution | 3 |
Housing data
| Housing material | Metal |
|---|---|
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
