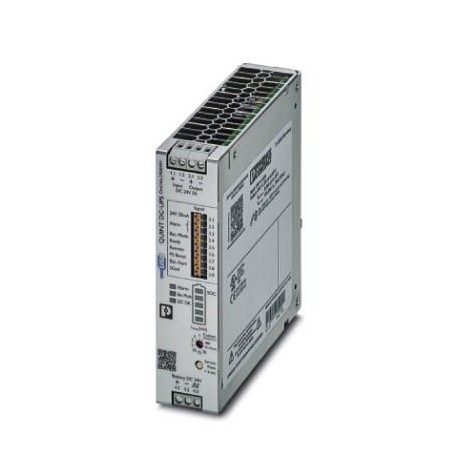

PHOENIX CONTACT QUINT4-UPS/24DC/24DC/5/USB QUINT4-UPS/24DC/24DC/5/USB 2906991 PHOENIX CONTACT Uninterruptible power supply View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT4-UPS/24DC/24DC/5/USB 2906991 PHOENIX CONTACT Uninterruptible power supply

QUINT4-UPS/24DC/24DC/5/USB

2906991

PHOENIX CONTACT

1 Pcs.

Uninterruptible power supply QUINTUSV, IQTechnology, USB (Modbus/RTU), Rail mounting, Screw connection, input: 24 VDC, output: 24 VDC / 5 A, charging current: 1.5 A

Automation > UPS
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2906991
Packing unit1 pc
GTIN4055626171234
Weight per Piece (excluding packing)599.000 g
Custom tariff number85371091
Country of originCN (China)

Dimensions

Width35 mm
Height130 mm
Depth125 mm
Width with alternative assembly123 mm
Height with alternative assembly130 mm
Depth with alternative assembly37 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (EN 60721)
Degree of pollution2
Installation height≤ 4000 m

Input data

Input voltage24 V DC
Input voltage range18 V DC ... 30 V DC
Electric strength, max.35 V DC (Protected against polarity reversal)
Internal input fuseno
Inrush surge current≤ 7 A (≤ 4 ms)
Reverse polarity protectionyes
Fixed connect threshold22 V DC
Switch-on timemax. 3 s
Voltage drop, input/output0.3 V DC

Output data (general)

Short-circuit-proofyes
No-load proofyes
Switch-over time0 ms
UPS connection in parallelno
UPS connection in seriesno
Energy storage device connection in parallelYes, 5 (observe line protection)
Energy storage device connection in seriesno
Efficiencytyp. 98 %

Output data (mains operation)

Output voltage range18 V DC ... 30 V DC (UOut= UIn- 0.3 V DC)
18 V DC ... 32 V DC
Static Boost (IStat.Boost)6.25 A
Dynamic Boost (IDyn.Boost)10 A (5 s)
Selective Fuse Breaking (ISFB)30 A (15 ms)

Output data (battery operation)

Output voltage range19 V DC ... 32 V DC (UOUT= UBAT- 0.3 V DC)
Static Boost (IStat.Boost)6.25 A
Dynamic Boost (IDyn.Boost)10 A (5 s)
Selective Fuse Breaking (ISFB)30 A (15 ms)

Energy storage (battery)

Battery technologyVRLA, VRLA-WTR, LI-ION
End-of-charge voltage (temperature-compensated)25 V DC ... 32 V DC
End-of-charge voltage32 V DC
Max. capacity40 Ah
Nominal capacity (without additional charger)0.8 Ah ... 30 Ah
Charging current (configurable)max. 1.5 A
Charging time2.5 h (3.4 Ah)
Buffer time25 min. (3.4 Ah)
Temperature compensation (configurable)42 mV/K
Charge characteristic curveIU0U
Temperature sensoryes
IQ-Technologyyes

General data

Inflammability class in acc. with UL 94 (housing / terminal blocks)V0
MTBF (IEC 61709, SN 29500)> 1430000 h (25 °C)
> 916900 h (40 °C)
> 480100 h (60 °C)
Weight0.5 kg
Environmental protection directiveRoHS
WEEE
Reach

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.0.2 mm²
Single conductor/terminal point, stranded, with ferrule, max.2.5 mm²
Conductor cross section AWG min.30
Conductor cross section AWG max.12
Stripping length6.5 mm
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.0.2 mm²
Single conductor/terminal point, stranded, with ferrule, max.2.5 mm²
Conductor cross section AWG min.30
Conductor cross section AWG max.12
Stripping length6.5 mm
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data for battery

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.30
Conductor cross section AWG max.12
Stripping length6.5 mm
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionAdditional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply)
Noise immunityImmunity according to EN 61000-6-2 (industrial)
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m (Test Level 2)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Standards/regulationsEN 61000-4-8
Low Voltage DirectiveConformance with Low Voltage Directive 2014/35/EC
Standard – Safety extra-low voltageIEC 61010-1 (SELV)
IEC 61010-2-201 (PELV)
UL approvalsUL/C-UL Listed UL 61010-1
UL/C-UL Listed UL 61010-2-201
UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)2.3g
Overvoltage category (EN 61010-1)II (≤ 4000 m)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
