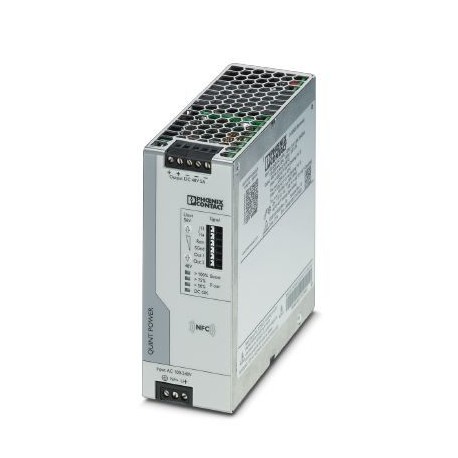

PHOENIX CONTACT QUINT4-PS/1AC/48DC/5 QUINT4-PS/1AC/48DC/5 2904610 PHOENIX CONTACT Power supply unit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT4-PS/1AC/48DC/5 2904610 PHOENIX CONTACT Power supply unit

QUINT4-PS/1AC/48DC/5

2904610

PHOENIX CONTACT

1 Pcs.

Power supply unit QUINT POWER switched primary-switched power supply for rail mounting, with optional output characteristic curve and SFB (Selective Fuse Breaking) technology, input: single-phase, output: 48VDC/5A

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2904610
Packing unit1 pc
GTIN4055626355061
Weight per Piece (excluding packing)1,117.800 g
Custom tariff number85044030
Country of originTH (Thailand)

Dimensions

Width50 mm
Height130 mm
Depth125 mm
Width with alternative assembly122 mm
Height with alternative assembly130 mm
Depth with alternative assembly53 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2
Installation height≤ 5000 m (> 2000 m, observe derating)

Input data

Nominal input voltage range100 V AC ... 240 V AC
110 V DC ... 250 V DC
Input voltage range100 V AC ... 240 V AC -15 % ... +10 %
110 V DC ... 250 V DC -18 % ... +40 %
Dielectric strength maximum300 V AC 60 s
AC frequency range50 Hz ... 60 Hz -10 % ... +10 %
Discharge current to PE< 3.5 mA
Current consumption3.4 A (100 V AC)
2.8 A (120 V AC)
1.5 A (230 V AC)
1.5 A (240 V AC)
Nominal power consumption271 VA
Inrush surge currenttyp. 16.1 A (at 25 °C)
Mains bufferingtyp. 43 ms (120 V AC)
typ. 43 ms (230 V AC)
Input fuse8 A (slow-blow, internal)
Choice of suitable circuit breakers10 A ... 16 A (Characteristic B, C, D, K or comparable)
Type of protectionTransient surge protection
Protective circuit/componentVaristor, gas-filled surge arrester

Output data

Nominal output voltage48 V DC
Setting range of the output voltage (USet)48 V DC ... 56 V DC (constant capacity)
Nominal output current (IN)5 A
Static Boost (IStat.Boost)6.25 A
Dynamic Boost (IDyn.Boost)10 A (5 s)
Selective Fuse Breaking (ISFB)30 A (15 ms)
Derating> 60 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback resistance≤ 60 V DC
Control deviation< 0.5 % (Static load change 10 % ... 90 %)
< 4 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %)
Residual ripple< 80 mVPP(with nominal values)
Output power240 W
Typical response time300 ms (from SLEEP MODE)
Maximum power dissipation in no-load condition< 3 W (120 V AC)
< 3 W (230 V AC)
Power loss nominal load max.< 19 W (120 V AC)
< 16 W (230 V AC)

General

Net weight1 kg
Efficiencytyp. 92.3 % (120 V AC)
typ. 93.5 % (230 V AC)
Insulation voltage input/output4 kV AC (type test)
2 kV AC (routine test)
Insulation voltage input / PE3.5 kV AC (type test)
2.4 kV AC (routine test)
Insulation voltage output / PE0.5 kV DC (type test)
0.5 kV DC (routine test)
Protection classI
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 1242000 h (25 °C)
> 784000 h (40 °C)
> 374000 h (60 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: PN≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically
alignable: PN<50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length6.5 mm

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length6.5 mm

Connection data for signaling

Connection methodPush-in connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Stripping length8 mm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Standard - Safety of transformersEN 61558-2-16 (air clearances and creepage distances only)
Standard - Electrical safetyIEC 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageIEC 60950-1 (SELV)
EN 60204-1 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Standard – Limitation of mains harmonic currentsEN 61000-3-2
Shipbuilding approvalDNV GL, PRS, BV, LR, ABS
UL approvalsUL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C)
Approval - requirement of the semiconductor industry with regard to mains voltage dipsSEMI F47-0706; EN 61000-4-11
Rail applicationsEN 50121-3-2
Overvoltage category (EN 60950-1)II (≤ 5000 m)
Overvoltage category (EN 61010-1)II (≤ 5000 m)
Overvoltage category (EN 62477-1)III (≤ 2000 m)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2904610 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) AC
1st secondary output voltage (EF006792) 48 V
Max. output current 1 (EF008284) 10 A
Secondary voltage adjustable (EF007002) Yes
Nominal value output voltage 1 (EF009393) 48 V
Nominal value output current 1 (EF009396) 5 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage AC 50 Hz (EF007076) 100 V
Rated supply voltage AC 60 Hz (EF007077) 100 V
Rated supply voltage DC (EF007078) 110 V
Output voltage stabilized (EF003092) Yes
Power consumption (EF000346) 271 VA
Power output (EF003034) 240 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Screw connection
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in height (EF000332) 130 mm
Direct mounting possible (EF005689) No
Width (EF000008) 50 mm
Height (EF000040) 130 mm
Depth (EF000049) 125 mm
Suitable for safety functions (EF001597) Yes
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) Other
