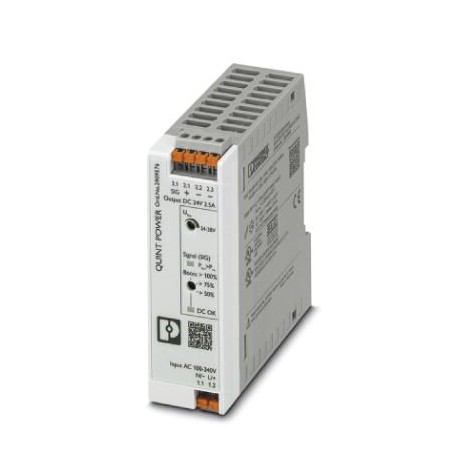

PHOENIX CONTACT QUINT4-PS/1AC/24DC/2.5/PT QUINT4-PS/1AC/24DC/2.5/PT 2909576 PHOENIX CONTACT Power supply unit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT4-PS/1AC/24DC/2.5/PT 2909576 PHOENIX CONTACT Power supply unit

QUINT4-PS/1AC/24DC/2.5/PT

2909576

PHOENIX CONTACT

1 Pcs.

Power supply unit Primary switching power supplies, QUINT POWER, Push-in connection, Rail mounting, input:1phase, output: 24 VDC / 2.5 A

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2909576
Packing unit1 pc
GTIN4055626356495
Weight per Piece (excluding packing)311.100 g
Custom tariff number85044030
Country of originDE (Germany)

Dimensions

Width32 mm
Height106 mm
Depth90 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2
Installation height≤ 5000 m (> 2000 m, observe derating)

Input data

Input voltage range100 V AC ... 240 V AC -15 % ... +10 %
110 V DC ... 250 V DC -20 % ... +40 %
Dielectric strength maximum300 V AC 30 s
Discharge current to PE< 0.25 mA (264 V AC, 60 Hz)
Current consumption0.85 A (100 V AC)
0.7 A (120 V AC)
0.39 A (230 V AC)
0.37 A (240 V AC)
Nominal power consumption71 VA
Inrush surge currenttyp. 10 A (at 25 °C)
Mains bufferingtyp. 54 ms (120 V AC)
typ. 54 ms (230 V AC)
Input fuse3.15 A (slow-blow, internal)
Type of protectionTransient surge protection
Protective circuit/componentVaristor

Output data

Nominal output voltage24 V DC
Setting range of the output voltage (USet)24 V DC ... 28 V DC (constant capacity)
Nominal output current (IN)2.5 A
Static Boost (IStat.Boost)3.125 A (≤ 40 °C)
Dynamic Boost (IDyn.Boost)5 A (≤60 °C (5 s), Input <150 V AC Derating 0.5 %/V)
Derating> 60 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback resistance≤ 35 V DC
Protection against surge voltage on the output≤ 32 V DC
Control deviation< 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.1 % (change in input voltage ±10 %)
Residual ripple< 40 mVPP(with nominal values)
Output power60 W
Typical response time500 ms
Maximum power dissipation in no-load condition< 1 W (230 V AC)
< 1 W (120 V AC)
Power loss nominal load max.< 5 W (230 V AC)
< 5 W (120 V AC)

General

Net weight0.244 kg
Efficiencytyp. 91.9 % (120 V AC)
typ. 92.6 % (230 V AC)
Insulation voltage input/output4 kV AC (type test)
3 kV AC (routine test)
Protection classII
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 1347000 h (25 °C)
> 734000 h (40 °C)
> 295000 h (60 °C)
Assembly instructionsDIN rail mounting

Connection data, input

Connection methodPush-in technology
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length10 mm

Connection data, output

Connection methodPush-in technology
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length10 mm

Connection data for signaling

Connection methodPush-in technology
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length10 mm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m (Test Level 2)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Conducted noise emissionEN 55016 EN 61000-6-4 (Class A)
Standards/regulationsEN 61000-4-8
EN 61000-4-11
EN 61000-4-9
EN 61000-4-12
EN 61000-4-16
EN 61000-4-18
Standard - Safety of transformersEN 61558-2-16
Standard - Electrical safetyIEC 61010-2-201 (SELV)
Standard - power supply devices for low voltage with DC outputEN 61204-3
Standard – Safety extra-low voltageIEC 61010-1 (SELV)
IEC 61010-2-201 (PELV)
Standard - Safe isolationIEC 61558-2-16
IEC 61010-2-201
Standard – Limitation of mains harmonic currentsEN 61000-3-2
UL approvalsUL Listed UL 61010-1
UL Listed UL 61010-2-201
UL 1310 Class 2 Power Units
ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6)
Overvoltage category (EN 61010-1)II
Overvoltage category (EN 62477-1)III (≤ 2000 m)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2909576 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) AC/DC
1st secondary output voltage (EF006792) 24 V
Max. output current 1 (EF008284) 5 A
Secondary voltage adjustable (EF007002) Yes
Nominal value output voltage 1 (EF009393) 24 V
Nominal value output current 1 (EF009396) 2.5 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage AC 50 Hz (EF007076) 100 V
Rated supply voltage AC 60 Hz (EF007077) 100 V
Rated supply voltage DC (EF007078) 110 V
Output voltage stabilized (EF003092) Yes
Power consumption (EF000346) 71 VA
Power output (EF003034) 60 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Other
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in height (EF000332) 106 mm
Direct mounting possible (EF005689) No
Width (EF000008) 32 mm
Height (EF000040) 106 mm
Depth (EF000049) 90 mm
Suitable for safety functions (EF001597) Yes
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
