PHOENIX CONTACT QUINT-PS/48DC/24DC/ 5 QUINT-PS/48DC/24DC/ 5 2320144 PHOENIX CONTACT DC/DC converters View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT-PS/48DC/24DC/ 5 2320144 PHOENIX CONTACT DC/DC converters

QUINT-PS/48DC/24DC/ 5

2320144

PHOENIX CONTACT

1 Pcs.

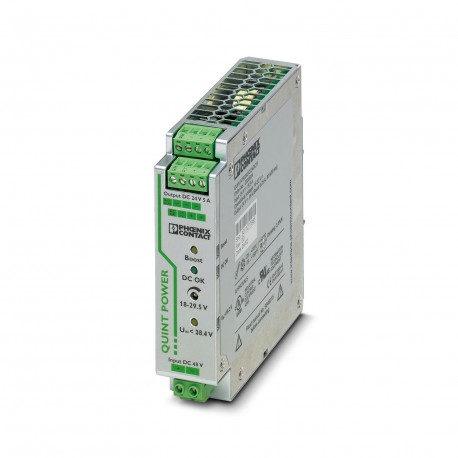

DC/DC converters Primary switched QUINT DC/DC transformer for rail mounting with SFB (Selective Fuse Breaking) technology, input: 48 V DC, output: 24 V DC/5 A

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Input data
DC operation
Nominal input voltage range48 V DC
Input voltage range30 V DC ... 60 V DC
Wide-range inputno
Input voltage range DC30 V DC ... 60 V DC
Voltage type of supply voltageDC
Inrush current< 5 A (typical)
Inrush current integral (I2t)< 0.2 A2s
Mains buffering time> 14 ms (48 V DC)
Current consumption3.5 A (48 V DC)
Protective circuitTransient surge protection; Varistor
Input fuse10 A (slow-blow, internal)
Permissible backup fuseB10 B16
Recommended breaker for input protection10 A ... 16 A (Characteristics B, C, D, K)
Output data
Efficiency> 91.5 %
Output characteristicU/I
Nominal output voltage24 V DC ±1 %
Setting range of the output voltage (USet)18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)5 A (-25 °C ... 60 °C)
POWER BOOST (IBoost)6.25 A (-25 °C ... 40 °C permanent, UOUT= 24 V DC )
Selective Fuse Breaking (ISFB)30 A (12 ms)
Magnetic circuit breaker trippingB2 / B4 / C2
Derating60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance35 V DC
Protection against overvoltage at the output (OVP)< 35 V DC
Max. capacitive loadunlimited
Active current limitationApproximately 6.9 A
Control deviation< 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %)
Residual ripple< 25 mVPP
Output power120 W
Peak switching voltages nominal load< 5 mVPP(20 MHz)
Maximum no-load power dissipation2.7 W
Power loss nominal load max.11 W
Rise time< 2 ms (UOUT(10 % ... 90 %))
Connection in parallelyes, for redundancy and increased capacity
Connection in seriesyes
Signal: DC OK active
Output descriptionUOUT> 0.9 x UN: High signal
Switching voltage range18 V DC ... 24 V DC
Maximum inrush current< 20 mA (short-circuit-proof)
Signal: POWER BOOST, active
Output descriptionIOUT< IN: High signal
Switching voltage range18 V DC ... 24 V DC
Maximum inrush current< 20 mA (short-circuit-proof)
Signal: UINOK, active
Output descriptionUIN> 38.4 V: high signal
Switching voltage range18 V DC ... 24 V DC
Maximum inrush current< 20 mA (short-circuit-proof)
Connection data
Input
Connection methodPluggable screw connection
Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length8 mm
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Output
Connection methodPluggable screw connection
Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length7 mm
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Signal
Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Signaling
Types of signalingLED
Active switching output
Relay contact
Signal output: DC OK active
Status display"DC OK" LED green
Colorgreen
Signal output: POWER BOOST, active
Status display"BOOST" LED yellow/IOUT> IN: LED on
Coloryellow
Note on status displayLED on
Signal output: UINOK, active
Status displayLED "UIN< 38.4 V" yellow/UIN< 38.4 V DC: LED on
Coloryellow
Note on status displayLED on
Electrical properties
Number of phases1.00
Insulation voltage input/output1.5 kV (type test)
1 kV (routine test)
1 kV (type test)
Product properties
MTBF (IEC 61709, SN 29500)> 995000 h (40 °C)
Data management status
Article revision04
Insulation characteristics
Protection classIII
Degree of pollution2
Dimensions
Width32 mm
Height130 mm
Depth125 mm
Installation dimensions
Installation distance right/left0 mm / 0 mm (≤ 70 °C)
Installation distance right/left (active)15 mm / 15 mm (≤ 70 °C)
Installation distance top/bottom50 mm / 50 mm (≤ 70 °C)
Installation distance top/bottom (active)50 mm / 50 mm (≤ 70 °C)
Alternative assembly
Width122 mm
Height130 mm
Depth35 mm
Mounting
Mounting typeDIN rail mounting
Assembly notealignable: PN≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically
alignable: PN<50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom
Mounting positionhorizontal DIN rail NS 35, EN 60715
With protective coatingno
Material specifications
Housing materialMetal
Type of housingAluminum (AlMg3)
Hood versionGalvanized sheet steel, free from chrome (VI)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Ambient temperature (start-up type tested)-40 °C
Climatic class3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.
Standards and regulations
Rail applicationsEN 50121-4
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV)
EN 60204-1 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Approvals
UL approvalsUL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
EMC data
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
EMC requirements for noise emissionEN 61000-6-3
EN 61000-6-4
EMC requirements for noise immunityEN 61000-6-1
EN 61000-6-2
Electrostatic discharge
Standards/regulationsEN 61000-4-2
Electrostatic discharge
Contact discharge8 kV (Test Level 4)
Discharge in air15 kV (Test Level 4)
CommentsCriterion B
Electromagnetic HF field
Standards/regulationsEN 61000-4-3
Electromagnetic HF field
Frequency range80 MHz ... 1 GHz
Test field strength20 V/m (Test Level 3)
Frequency range1 GHz ... 2 GHz
Test field strength10 V/m (Test Level 3)
Frequency range2 GHz ... 3 GHz
Test field strength10 V/m (Test Level 3)
CommentsCriterion A
Fast transients (burst)
Standards/regulationsEN 61000-4-4
Fast transients (burst)
Input2 kV (Test Level 3 - asymmetrical)
Output2 kV (Test Level 3 - asymmetrical)
Signal2 kV (Test Level 4 - asymmetrical)
CommentsCriterion A
Surge voltage load (surge)
Standards/regulationsEN 61000-4-5
Surge voltage load (surge)
Input0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical)
Output0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical)
Signal1 kV (Test Level 2 - asymmetrical)
CommentsCriterion B
Conducted interference
Standards/regulationsEN 61000-4-6
Conducted interference
I/O/Sasymmetrical
Frequency range0.15 MHz ... 80 MHz
CommentsCriterion A
Voltage10 V (Test Level 3)
Emitted interference
Standards/regulationsEN 61000-6-3
Radio interference voltage in acc. with EN 55011EN 55011 (EN 55022) Class B, area of application: Industry and residential
Emitted radio interference in acc. with EN 55011EN 55011 (EN 55022) Class B, area of application: Industry and residential
Criteria
Criterion ANormal operating behavior within the specified limits.
Criterion BTemporary impairment to operational behavior that is corrected by the device itself.

ETIM for 2320144 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) DC
1st secondary output voltage (EF006792) 18 V
Max. output current 1 (EF008284) 6.25 A
Secondary voltage adjustable (EF007002) Yes
Nominal value output voltage 1 (EF009393) 24 V
Nominal value output current 1 (EF009396) 5 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage DC (EF007078) 30 V
Output voltage stabilized (EF003092) Yes
Power output (EF003034) 120 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Screw connection
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in height (EF000332) 130 mm
Direct mounting possible (EF005689) No
Width (EF000008) 32 mm
Height (EF000040) 130 mm
Depth (EF000049) 125 mm
Suitable for safety functions (EF001597) Yes
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
