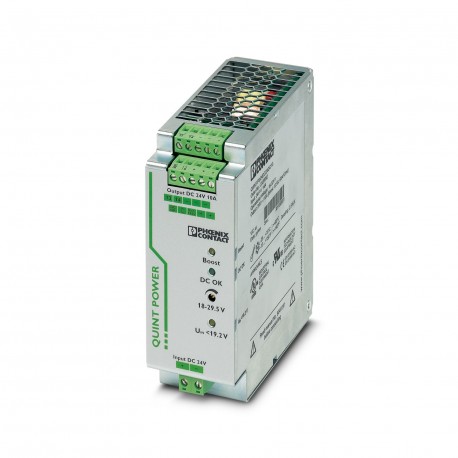

PHOENIX CONTACT QUINT-PS/24DC/24DC/10 QUINT-PS/24DC/24DC/10 2320092 PHOENIX CONTACT DC/DC converters View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT-PS/24DC/24DC/10 2320092 PHOENIX CONTACT DC/DC converters

QUINT-PS/24DC/24DC/10

2320092

PHOENIX CONTACT

1 Pcs.

DC/DC converters Primary switched QUINT DC/DC transformer for rail mounting with SFB (Selective Fuse Breaking) technology, input: 24 V DC, output: 24 V DC/10 A Rail-mount switching QUINT DC/DC converter with SFB (Selective Fuse Breaking) technology, input: 24 V DC, output: 24 V DC / 10 A

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2320092
Packing unit1 pc
Catalog pagePage 248 (C-4-2017)
GTIN4046356481885
Weight per Piece (excluding packing)900.000 g
Custom tariff number85044030
Country of originCN (China)

Dimensions

Width48 mm
Height130 mm
Depth125 mm
Width with alternative assembly122 mm
Height with alternative assembly130 mm
Depth with alternative assembly51 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C derating, 2.5 %/K, startup at -40°C type-tested)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage range24 V DC
Input voltage range18 V DC ... 32 V DC
Current consumption14 A (24 V, IBOOST)
Inrush surge current< 15 A (typical)
Mains buffering> 12 ms (24 V DC)
Input fuse25 A (internal (device protection))
Choice of suitable circuit breakers16 A ... 20 A (Characteristics B, C, D, K)
Type of protectionTransient surge protection
Protective circuit/componentVaristor

Output data

Nominal output voltage24 V DC ±1 %
Setting range of the output voltage (USet)18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)10 A (-25 °C ... 60 °C)
POWER BOOST (IBoost)12.5 A (-25°C ... 40°C permanent, UOUT= 24 V DC )
Selective Fuse Breaking (ISFB)60 A (12 ms)
Derating60 °C ... 70 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback resistance35 V DC
Output overvoltage protection< 35 V DC
Max. capacitive loadunlimited
Active current limitationApprox. 18 A
Control deviation< 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %)
Residual ripple< 20 mVPP
Peak switching voltages nominal load< 10 mVPP(20 MHz)
Maximum power dissipation in no-load condition1.6 W
Power loss nominal load max.24 W

General

Net weight0.9 kg
Efficiency> 92 %
Insulation voltage input/output1.5 kV (type test)
1 kV (routine test)
Protection classIII
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)
> 763000 h (40 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: PN≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically
alignable: PN<50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom

Connection data, input

Connection methodPluggable screw connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length8 mm
Screw threadM3

Connection data, output

Connection methodPluggable screw connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length7 mm
Screw threadM3

Connection data for signaling

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Screw threadM3

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m (Test Level 2)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV)
EN 60204 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Shipbuilding approvalDNV GL (EMC B)
UL approvalsUL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 5 Hz, amplitude ±1.6 mm (according to IEC 60068-2-6)
5 Hz ... 100 Hz, 4g, 90 min.
Rail applicationsEN 50121-4

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2320092 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) DC
1st secondary output voltage (EF006792) 18 V
Max. output current 1 (EF008284) 12.5 A
Secondary voltage adjustable (EF007002) Yes
Nominal value output voltage 1 (EF009393) 24 V
Nominal value output current 1 (EF009396) 10 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage DC (EF007078) 18 V
Output voltage stabilized (EF003092) Yes
Power output (EF003034) 240 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Screw connection
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in height (EF000332) 130 mm
Direct mounting possible (EF005689) No
Width (EF000008) 48 mm
Height (EF000040) 130 mm
Depth (EF000049) 125 mm
Suitable for safety functions (EF001597) Yes
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) Other
