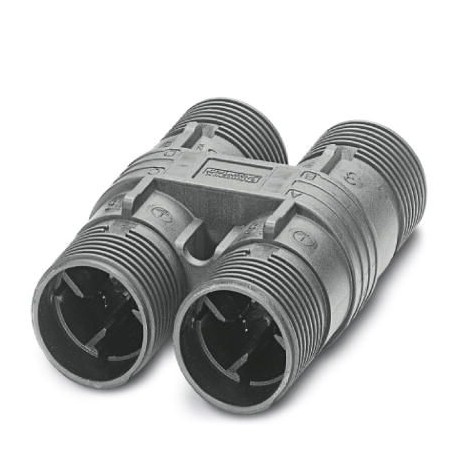

QPD H 4X2,5 GY 1582260 PHOENIX CONTACT H distributor
QPD H 4X2,5 GY
1582260
PHOENIX CONTACT
1 Pcs.
H distributor
H Distributor, QUICKON Connection, Number of Poles: 4, 1 mm² ... 2.5 mm², 690 V, 20 A, grey, without QUICKON nut, cable diameter range: 6 mm ... 14 mm
Automation > Sensor actuator adapter
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1582260 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 94 (PC-2011) |
| GTIN | 4046356463409 |
| Weight per Piece (excluding packing) | 82.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Type | H-distributor |
|---|---|
| Color | gray |
| Connection method | QUICKON connection |
| IDC connection | |
| Number of positions | 4 |
| Wrench size, union nut | 22 mm |
| Tightening torque, union nut | 5 Nm |
| Number of connections | 4 |
| Conductor cross section flexible min. | 1 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 1 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 16 |
| Conductor cross section AWG max. | 14 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
|---|---|
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 2 mm ... 3.8 mm |
| External cable diameter | 6 mm ... 14 mm (Order Quickon nuts or Quickon connectors separately) |
| Position marking | 1, 2, 3, 4 |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP68 (2 m / 24 h) | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
Electrical characteristics
| Nominal current IN | 20 A |
|---|---|
| Rated current | 20 A |
| Rated voltage (III/3) | 690 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
Mechanical characteristics
| QUICKON connectability | max. 10 |
|---|---|
| Insertion/withdrawal cycles | 50 (QUICKON connections max. 10) |
| Category of shock impact | IK07 |
Material data
| Contact material | CuZn |
|---|---|
| Contact surface material | Tin-plated |
| Contact carrier material | PA |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Overvoltage category | III |
| Degree of pollution | 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
