View larger
Images are for illustrative purposes only. Please refer to data sheet for details

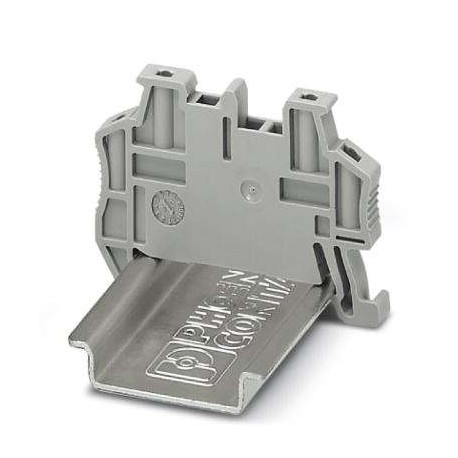

CLIPFIX 35-5 3022276 PHOENIX CONTACT End clamp
CLIPFIX 35-5
3022276
PHOENIX CONTACT
1 Pcs.
End clamp
Quick mounting end bracket, for symmetrical rail NS 35/7.5 or symmetrical rail NS 35/15, with possibility of marking, with possibility of parking for FBS... 5, FBS... 6, KSS 5, KSS 6, width: 5.15 mm, colour: grey
Automation > End bracket for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3022276 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 582 (C-3-2017) |
| GTIN | 4017918194154 |
| Weight per Piece (excluding packing) | 4.700 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141135eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141135eCl@ss 8.027141135eCl@ss 9.027141135
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Grey |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Type of latching (EF002667) | Screwless |
| Material (EF002169) | Other |
| Material quality (EF001257) | Polyamide (PA) |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Height (EF000040) | 48.6 mm |
| Depth (EF000049) | 35.3 mm |
