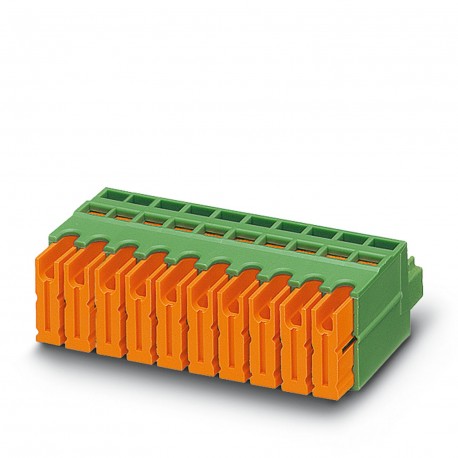

PHOENIX CONTACT QC 0,5/ 2-ST-3,81 BD2:1-2 QC 0,5/ 2-ST-3,81 BD2:1-2 1028953 PHOENIX CONTACT Connector for printed circuit board, nominal current: 6 A,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QC 0,5/ 2-ST-3,81 BD2:1-2 1028953 PHOENIX CONTACT Connector for printed circuit board, nominal current: 6 A,..

QC 0,5/ 2-ST-3,81 BD2:1-2

1028953

PHOENIX CONTACT

50 Pcs.

Connector for printed circuit board, nominal current: 6 A, number of poles: 2, pitch: 3,81 mm, connection type: displacement Connection, color: green, surface contacts: Tin Connector for printed circuit board, nominal section: 0.5 mm², color: green, nominal current: 6 A, nominal voltage (III/2): 200 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: QC 0.5/.. -ST, pitch: 3.81 mm, connection type: Offset connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON MC 1.5, lock: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted Circuit Board Connector
Product FamilyQC 0.5/.. -ST
Product LineCOMBICON Connectors XS
Number of poles2
Step3.81 mm
Number of connections2
Number of rows1
Number of potentials2
Data Maintenance Status
Article Review00
Electrical Properties
Nominal Current IN6 A
Nominal voltage UN200 V
Sizing voltage (III/3)200 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)200 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)400 V
Dimensioning transient voltage (II/2)4 kV
Connection data
Connection technology
ConstructionStandard
Connector SystemCOMBICON MC 1.5
Nominal Section0.5 mm²
Contact Connection TypeFemale
Blockade
Locking systemwithout
Clamping flangewithout
Connecting Conductors
Connection typeScroll connection
Connection Direction Driver/PCB0 °
Flexible conductor section0.34 mm² ... 0.5 mm²
AWG Conductor Section22 ... 20
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsMalleable cast iron tinning
Metal surface of the terminal point (top layer)Tin (5 - 7 μm Sn)
Metal surface contact area (top layer)Tin (5 - 7 μm Sn)
Material data - housing
Color (Housing)Green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Material data: drive element
Color (Drive Element)Orange (2003)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Dimensions
Dimension Schemeedyvovzxrs.jpg
Step3.81 mm
Width [w]4.6 mm
Height [h]12.4 mm
Length [l]22.3 mm
Mechanical testing
Forces when plugging in and unplugging
Test SpecificationDIN EN 60512-13-2:2006-11
ResultApproved Test
Number of cycles25
Plug-in force approx.8 N
Power when unplugging by pole approx.6 N
Environmental and life-life conditions
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Electrical Testing
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)200 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)3 mm
Sizing Insulation Voltage (III/2)200 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3 mm
Sizing Insulation Voltage (II/2)400 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)3 mm
Packaging Information
Type of packagingBoxed Packaging

ETIM for 1028953 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 200 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.34 mm²
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
