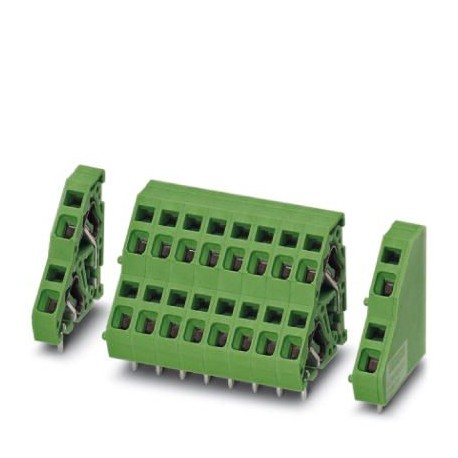

PHOENIX CONTACT ZFKKDSA 2,5-5,08- 7 GY7035 ZFKKDSA 2,5-5,08- 7 GY7035 1708456 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFKKDSA 2,5-5,08- 7 GY7035 1708456 PHOENIX CONTACT PCB terminal block

ZFKKDSA 2,5-5,08- 7 GY7035

1708456

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 14, number of rows: 2, number of poles per row: 7, article family: ZFKKDS(A) 2.5, pitch: 5.08 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: light gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1708456
Packing unit1
GTIN4055626001852
Custom tariff number85369010

Dimensions

Length [ l ]24 mm
Pitch5.08 mm
Dimension a30.48 mm
Width [ w ]36.56 mm
Height25.5 mm
Height [ h ]29 mm
Solder pin [P]3.5 mm
Hole diameter1.3 mm

General

Range of articlesZFKKDS(A) 2,5
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN17.5 A
Nominal cross section2.5 mm²
Solder pin surface
Internal cylindrical gageA3
Stripping length7 mm
Number of positions7

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.12

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
