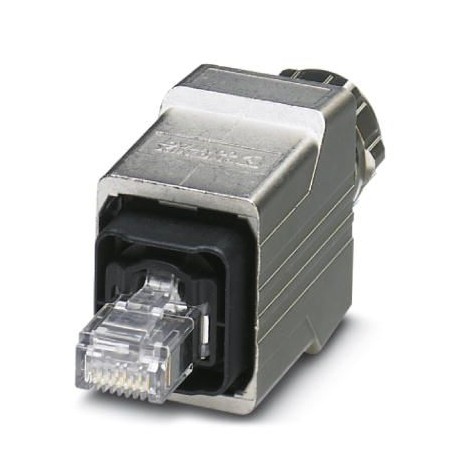

VS-PPC-C1-MNNA-4Q5-EMC 1403366 PHOENIX CONTACT RJ45 connector
VS-PPC-C1-MNNA-4Q5-EMC
1403366
PHOENIX CONTACT
1 Pcs.
RJ45 connector
Push-pull plug-in connector (variant 14), metal, with RJ45-QUICKON plug-in connector insert 4 poles, with QUICKON quick-connect technology, for 1- and 7-wire AWG 22 conductors, for a cable diameter of 5.0 mm ... 8.0 mm
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1403366 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 80 (C-2-2013) |
| GTIN | 4046356708319 |
| Weight per Piece (excluding packing) | 79.600 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Standards/specifications | IEC PAS 61076-3-117 |
|---|---|
| Number of positions | 4 |
| Connection profile | RJ45 8(4) |
| Locking type | Push Pull |
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection method | IDC fast connection |
| Conductor cross section | 0.32 mm² (solid) |
| 0.36 mm² (flexible) | |
| Connection cross section AWG | 22 ... 22 (solid) |
| 22 ... 22 (flexible) | |
| Max. cable diameter | 5 mm ... 8 mm |
| External cable diameter | 5 mm ... 8 mm |
| Cable outlet | straight |
| Color | silver |
| Degree of protection | IP65/IP67 |
| Type | |
| No. of cable outlets | 1 |
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 45 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Zinc die-cast |
| Housing surface material | Nickel-plated |
| Contact carrier material | PC |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Material | Metal |
| O-ring material | NBR |
| Cable seal material | TPE |
| Material housing intermediate seal | NBR |
| Height | 30 mm |
Electrical characteristics
| Number of positions | 4 |
|---|---|
| Nominal voltage UN | 50 V |
| Nominal current IN | 1.75 A |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) CAT5 (IEC 11801:2002) |
| Rated current | 1.75 A |
| Overvoltage category | I |
| Degree of pollution | 2 |
| Contact resistance | 0.001 Ω (Wire – IDC) |
| 0.005 Ω (Litz wires – IDC) | |
| Rated voltage (III/3) | 72 V (DC) |
Standards and Regulations
| Standards/regulations | IEC PAS 61076-3-117 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027189239eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440101eCl@ss 8.027440101eCl@ss 9.027440101
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 4 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 1.75 A |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | I |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.32 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.32 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.32 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.32 mm² |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Other |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
