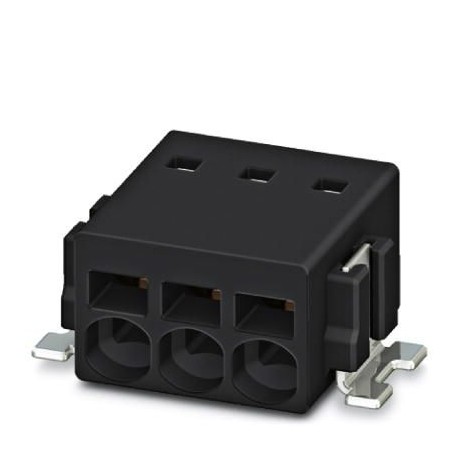

PHOENIX CONTACT PTSM 0,5/ 6-2,5-H SMDBD1-S2R44 PTSM 0,5/ 6-2,5-H SMDBD1-S2R44 1702727 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSM 0,5/ 6-2,5-H SMDBD1-S2R44 1702727 PHOENIX CONTACT PCB terminal block

PTSM 0,5/ 6-2,5-H SMDBD1-S2R44

1702727

PHOENIX CONTACT

770 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 6 A, dimensioning voltage (III/2): 160 V, nominal section: 0.5 mm², Number of potentials: 6, Number of rows: 1, Number of poles per row: 6, family of articles: PTSM 0.5/.. -H-SMD, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: SMD soldering, driver/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pad geometry, Pin length [P]: 2 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1702727
Packing unit1
GTIN4046356609753
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesPTSM 0,5/..-H-SMD
Pitch2.5 mm
Number of positions6
Connection methodPush-in spring connection
Mounting typeSMD soldering
Pin layoutLinear pad geometry
Number of levels1
Number of connections6
Number of potentials6

Electrical parameters

Rated current6 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.2 mm² ... 0.5 mm² (up to 0.75 mm² supported, at a rated insulation voltage of 32 V at III/2)
Conductor cross section AWG / kcmil26 ... 20
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
Stripping length6 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]9 mm
Width [ w ]17.6 mm
Height [ h ]5.12 mm
Pitch2.5 mm
Height (without solder pin)5.12 mm
Solder pin [P]2 mm
Pin spacing2.5 mm
Dimension a12.5 mm

Dimensions for PCB design

Pin spacing2.5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package770
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed

Pull-out test

Pull-out testIEC 60998-2-2:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.14 mm² / solid / > 7 N
0.14 mm² / flexible / > 7 N
0.2 mm² / solid / > 10 N
0.5 mm² / solid / > 30 N
0.75 mm² / flexible / > 35 N

Electrical tests

Rated current6 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Air clearances and creepage distances

SpecificationIEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05
Insulating material groupIIIa
Voltage32 V
Rated insulation voltage (III/3)32 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)160 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Vibration test

Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of waterTest passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 %
Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Resistance to ageing, humidity and penetration of solids

Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Standards and Regulations

Connection in acc. with standardEN-VDE
UL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
