PHOENIX CONTACT PTSA 1,5/ 8-3,5-F MIX BD:NZ PTSA 1,5/ 8-3,5-F MIX BD:NZ 1766750 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

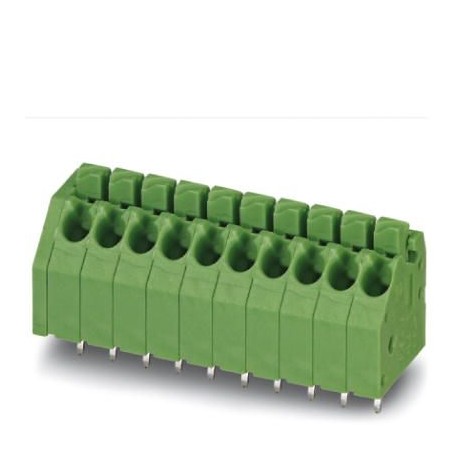

PTSA 1,5/ 8-3,5-F MIX BD:NZ 1766750 PHOENIX CONTACT PCB terminal block

PTSA 1,5/ 8-3,5-F MIX BD:NZ

1766750

PHOENIX CONTACT

120 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 8 A, nominal voltage (III/2): 250 V, nominal cross-section: 1.5 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, article family: PTSA 1.5, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: multicolor, Pin arrangement: Linear front pin arrangement, Pin length [P]: 3.5 mm, number of welding pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1766750
Packing unit120 pc
Minimum order quantity120 pc
NoteMade to Order (non-returnable)
GTIN4046356436908
Weight per Piece (excluding packing)3.860 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]12 mm
Pitch3.5 mm
Dimension a24.5 mm
Width [ w ]29.5 mm
Height13.1 mm
Height [ h ]16.7 mm
Solder pin [P]3.6 mm
Pin spacing3.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 1,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)250 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²
Solder pin surface
Stripping length9 mm
Number of positions8

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
