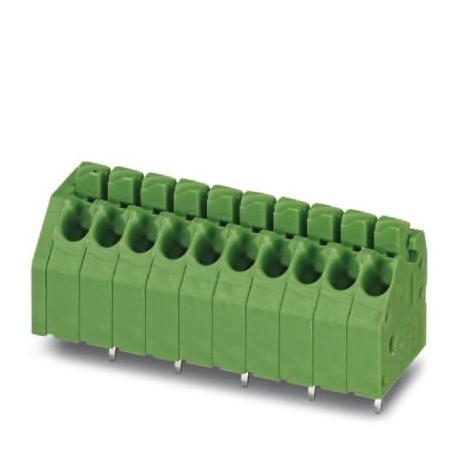

PTSA 1,5/21-3,5-ZI BD:1-21SO 1774483 PHOENIX CONTACT PCB terminal block

PTSA 1,5/21-3,5-ZI BD:1-21SO

1774483

PHOENIX CONTACT

40 Pcs.

PCB terminal block Printed circuit board terminal block, rated current: 8 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm², number of potentials: 21, number of rows: 1, number of poles per row: 21, article family: PTSA 1.5, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Zigzag Pins W, Pin length [P]: 3.5 mm, number of welding pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1774483
Packing unit40 pc
Minimum order quantity40 pc
NoteMade to Order (non-returnable)
GTIN4046356479066
Weight per Piece (excluding packing)9.210 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]12 mm
Pitch3.5 mm
Dimension a70 mm
Width [ w ]75 mm
Height13.1 mm
Height [ h ]16.7 mm
Solder pin [P]3.6 mm
Pin spacing3.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 1,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)250 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²
Solder pin surface
Stripping length9 mm
Number of positions21

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1774483 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 16.7 mm
Number of electrical connections (EF008252) 21
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
