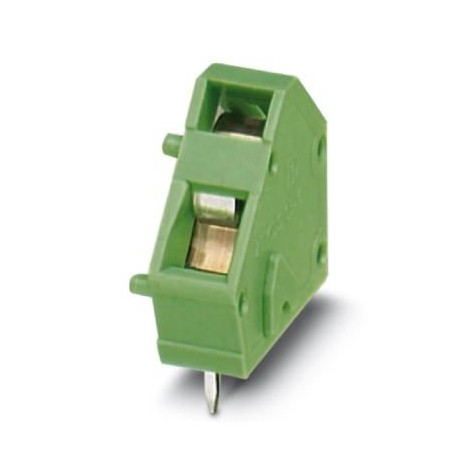

PHOENIX CONTACT ZFKDS 1,5C-5,0 YE ZFKDS 1,5C-5,0 YE 1702024 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZFKDS 1,5C-5,0 YE 1702024 PHOENIX CONTACT PCB terminal block

ZFKDS 1,5C-5,0 YE

1702024

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 16 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 1.5 mm², Number of potentials: 1, Number of rows: 1, Number of poles per row: 1, article family: ZFKDS(A) 1.5C, pitch:5 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: yellow, Pin arrangement: Double linear pin arrangement, Pin length [P]: 3.5 mm, packaging type: boxed packed. Individual disc for the individual composition of different numbers of poles. To complete the block, an additional terminal block is required (see accessories). Block-bound items in different numbers of poles are also available.

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1702024
Packing unit1
GTIN4046356570930
Custom tariff number85369010

Dimensions

Length [ l ]14.1 mm
Pitch5 mm
Height13 mm
Solder pin [P]3.5 mm
Pin spacing5.08 mm
Hole diameter1.1 mm

General

Range of articlesZFKDS(A) 1,5C
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section1.5 mm²
Maximum load current16 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7 mm
Number of positions1

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.14
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
