View larger
Images are for illustrative purposes only. Please refer to data sheet for details

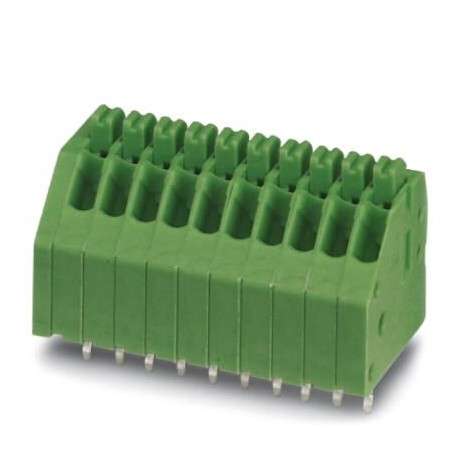

PTSA 0,5/ 9-2,5-F MC:RD,BK,-BU 1833709 PHOENIX CONTACT PCB terminal block, nominal current: 2 A, nom. voltag..
PTSA 0,5/ 9-2,5-F MC:RD,BK,-BU
1833709
PHOENIX CONTACT
50 Pcs.
PCB terminal block, nominal current: 2 A, nom. voltage: 250 V, pitch: 2.5 mm, number of positions: 9, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color. Soldering legs in front area, one-rowed
Printed circuit board terminal block, rated current: 2 A, rated voltage (III/2): 250 V, rated cross-section: 0.5 mm², number of potentials: 9, number of rows: 1, number of poles per row: 9, article family: PTSA 0.5, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.6 mm, number of welding pins per potential: 1, packaging type: boxed packaging. Welding pins in the anterior area, one row
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PCB terminal block, nominal current: 2 A, nom. voltage: 250 V, pitch: 2.5 mm, number of positions: 9, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color. Soldering legs in front area, one-rowed
Key Commercial Data
| Orderkey | 1833709 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356927451 |
| Custom tariff number | 85369010 |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Pitch | 2.5 mm |
| Dimension a | 20 mm |
| Width [ w ] | 24 mm |
| Height | 13.1 mm |
| Height [ h ] | 16.7 mm |
| Solder pin [P] | 3.6 mm |
| Pin spacing | 2.5 mm |
| Hole diameter | 1 mm |
General
| Range of articles | PTSA 0,5 |
|---|---|
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 63 V |
| Rated voltage (III/2) | 250 V |
| Rated voltage (II/2) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 2 A |
| Nominal cross section | 0.5 mm² |
| Solder pin surface | |
| Stripping length | 9 mm |
| Number of positions | 9 |
Connection data
| Conductor cross section AWG min. | 24 |
|---|---|
| Conductor cross section AWG max. | 20 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261100 |
|---|---|
| eCl@ss 6.0 | 27261100 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
ETIM
| ETIM 4.0 | EC002643 |
|---|---|
| ETIM 5.0 | EC002643 |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
UNSPSC
| UNSPSC 13.2 | 39121432 |
|---|
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 16.7 mm |
| Number of electrical connections (EF008252) | 9 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 2.5 mm |
| Rated current In (EF008250) | 2 A |
| Rated voltage (EF000228) | 250 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1 mm |
| Length pin (EF006825) | 3.6 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
