View larger
Images are for illustrative purposes only. Please refer to data sheet for details

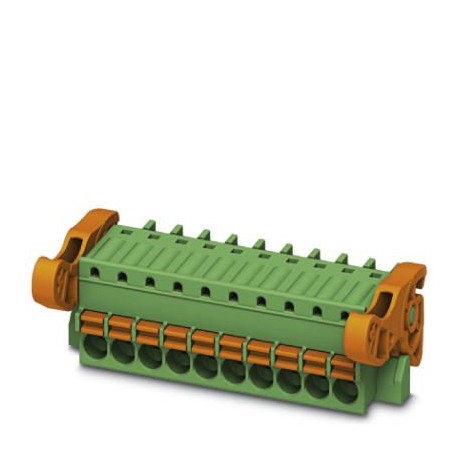

FK-MCP 1,5/10-ST-3,5-LRAUBKNZ2 1715777 PHOENIX CONTACT Printed-circuit board connector
FK-MCP 1,5/10-ST-3,5-LRAUBKNZ2
1715777
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Connector for printed circuit board, color: black, contact surface: Gold, number of potentials: 10, number of poles: 10, number of connections: 10, family of items: FK-MCP 1.5/.. -ST-LR, pitch: 3.5mm, packing type: boxed packed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | FK-MCP 1,5/..-ST-LR |
|---|---|
| Number of positions | 10 |
| Connection method | Push-in spring connection |
| Insulating material group | I |
| Rated voltage (III/2) | 160 V |
| Nominal current IN | 8 A |
| Nominal cross section | 1.5 mm² |
| Flammability rating according to UL 94 | V0 |
Specifications for ferrules
| Recommended crimping pliers | 1212034 CRIMPFOX 6 |
|---|---|
| Ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 0.25 mm²; Length: 7 mm ... 9 mm |
| Cross section: 0.34 mm²; Length: 7 mm ... 9 mm | |
| Cross section: 0.5 mm²; Length: 8 mm ... 9 mm | |
| Cross section: 0.75 mm²; Length: 8 mm ... 9 mm | |
| Cross section: 1 mm²; Length: 8 mm ... 9 mm | |
| Cross section: 1.5 mm²; Length: 8 mm ... 9 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Number of poles (EF001391) | 10 |
| Modular spacing contacts (EF007326) | 3.5 mm |
| Modular spacing connections (EF006827) | 3.5 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable cable type (EF006816) | Tubular cable |
| Housing colour (EF000136) | Black |
