PTPOWER 95 P-3L/N/FE-F

1091230

PHOENIX CONTACT

2 Pcs.

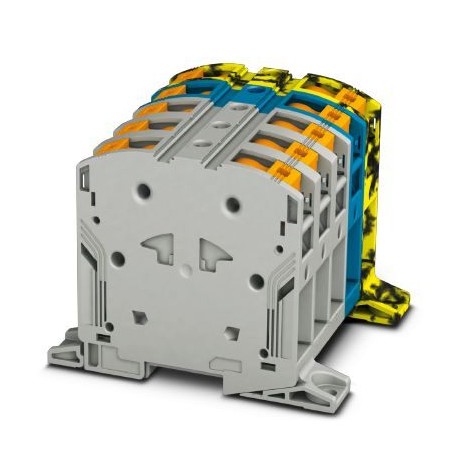

High-current terminal block, blocked, with test socket, nom. voltage: 1000 V AC / 1500 V DC, nominal current: 232 A, connection method: Power-Turn connection, number of connections: 2, number of positions: 5, cross section: 25 mm² - 95 mm², AWG: 4 - 4/0, width: 125 mm, color: gray/blue/black-yellow, mounting type: direct screw connection Power terminal, locked, with test socket, rated voltage: 1000 V, rated current: 232 A, number of connections: 2, number of poles: 5, connection type: PowerTurn connection, 1st floor, Sizing cross-section: 95 mm², cross-section: 25 mm² - 95 mm², mounting type: direct screwed, color: grey/blue/black-yellow

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1091230
Packing unit1
GTIN4055626903811
Custom tariff number85369010

General

Number of positions5
Number of levels1
Number of connections2
Nominal cross section95 mm²
Colorgray/blue/black-yellow
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum load current232 A (with 95 mm2conductor cross section)
Nominal current IN232 A
Nominal voltage UN1000 V AC
1500 V DC
Open side panelNo
Back to top

Dimensions

Width125 mm
Length101 mm
Height NS 35/15105 mm
Back to top

Connection data

Connection1 level
Connection methodPower-Turn connection
Stripping length40 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.25 mm²
Conductor cross section solid max.95 mm²
Conductor cross section AWG min.4
Conductor cross section AWG max.4/0
Conductor cross section flexible min.25 mm²
Conductor cross section flexible max.95 mm²
Min. AWG conductor cross section, flexible4
Max. AWG conductor cross section, flexible4/0
Conductor cross section flexible, with ferrule without plastic sleeve min.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.95 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.95 mm²
Cross section with insertion bridge, solid max.95 mm²
Cross section with insertion bridge, stranded max.70 mm²
Back to top

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0
Back to top

Classifications

eCl@ss

eCl@ss 10.0.127141190
eCl@ss 4.027141120
eCl@ss 4.127141120
eCl@ss 5.027141120
eCl@ss 5.127141120
eCl@ss 6.027141100
eCl@ss 7.027141120
eCl@ss 8.027141120
eCl@ss 9.027141120
Back to top

ETIM

ETIM 3.0EC000897
ETIM 4.0EC000897
ETIM 5.0EC000897
ETIM 6.0EC000897
ETIM 7.0EC000897
Back to top

UNSPSC

UNSPSC 6.0130211811
UNSPSC 7.090139121410
UNSPSC 1139121410
UNSPSC 12.0139121410
UNSPSC 13.239121410
UNSPSC 18.039121410
UNSPSC 19.039121410
UNSPSC 20.039121410
UNSPSC 21.039121410
Back to top

ETIM for 1091230 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 25 mm²
Connectable conductor cross section solid-core (EF007337) 25 mm²
Rated current In (EF008250) 232 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 125 mm
Height (EF000040) 101 mm
Depth (EF000049) 105 mm
Closing plate required (EF002525) No
Colour (EF000007) Multi colour
Internally connected stages (EF002661) Yes
