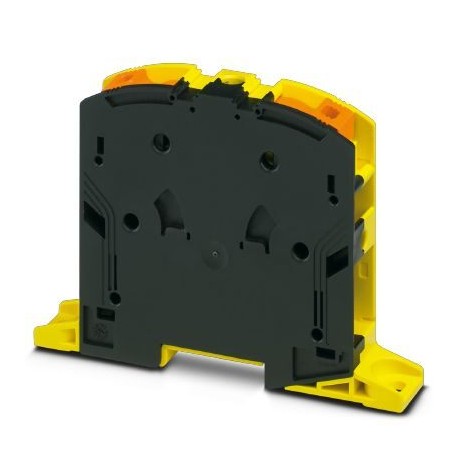

PHOENIX CONTACT PTPOWER 50 P-FE-F PTPOWER 50 P-FE-F 1091233 PHOENIX CONTACT High-current terminal block, with test socket, nom. voltage: 1000 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTPOWER 50 P-FE-F 1091233 PHOENIX CONTACT High-current terminal block, with test socket, nom. voltage: 1000 ..

PTPOWER 50 P-FE-F

1091233

PHOENIX CONTACT

10 Pcs.

High-current terminal block, with test socket, nom. voltage: 1000 V AC / 1500 V DC, nominal current: 150 A, connection method: Power-Turn connection, number of connections: 2, number of positions: 1, cross section: 10 mm² - 70 mm², AWG: 8 - 2/0, width: 20 mm, color: black/yellow, mounting type: direct screw connection Power terminal block, with test socket, nominal voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 10 mm² - 70 mm², mounting type: direct screwed, color: black/yellow

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1091233
Packing unit1
GTIN4055626903231
Custom tariff number85369010

Drawings

Circuit diagram

Circuit diagram

Back to top

General

Number of positions1
Number of levels1
Number of connections2
Potentials1
Nominal cross section50 mm²
Colorblack/yellow
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum load current150 A (with 50 mm² conductor cross section)
Nominal current IN150 A
Nominal voltage UN1000 V AC
1500 V DC
Open side panelNo
Back to top

Dimensions

Width20 mm
Length101 mm
Hole diameter6.5 mm
Drill hole spacing123.4 mm
Pitch20 mm
Back to top

Connection data

Connection1 level
Connection methodPower-Turn connection
Stripping length30 mm ... 32 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.10 mm²
Conductor cross section solid max.70 mm²
Conductor cross section AWG min.8
Conductor cross section AWG max.2/0
Conductor cross section flexible min.10 mm²
Conductor cross section flexible max.70 mm²
Min. AWG conductor cross section, flexible8
Max. AWG conductor cross section, flexible2/0
Conductor cross section flexible, with ferrule without plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.50 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.50 mm²
Cross section with insertion bridge solid min.10 mm²
Cross section with insertion bridge, solid max.50 mm²
Cross section with insertion bridge stranded min.10 mm²
Cross section with insertion bridge, stranded max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule with plastic sleeve max.50 mm²
Internal cylindrical gageA10
Back to top

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0
Back to top

Classifications

eCl@ss

eCl@ss 10.0.127141190
eCl@ss 4.027141120
eCl@ss 4.127141120
eCl@ss 5.027141120
eCl@ss 5.127141100
eCl@ss 6.027141100
eCl@ss 7.027141120
eCl@ss 8.027141120
eCl@ss 9.027141120
Back to top

ETIM

ETIM 3.0EC000897
ETIM 4.0EC000897
ETIM 5.0EC000897
ETIM 6.0EC000897
ETIM 7.0EC000897
Back to top

UNSPSC

UNSPSC 6.0130211811
UNSPSC 7.090139121410
UNSPSC 1139121410
UNSPSC 12.0139121410
UNSPSC 13.239121410
UNSPSC 18.039121410
UNSPSC 19.039121410
UNSPSC 20.039121410
UNSPSC 21.039121410
Back to top

ETIM for 1091233 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 10 mm²
Connectable conductor cross section solid-core (EF007337) 10 mm²
Rated current In (EF008250) 150 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 20 mm
Height (EF000040) 101 mm
Closing plate required (EF002525) No
Colour (EF000007) Multi colour
Internally connected stages (EF002661) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
