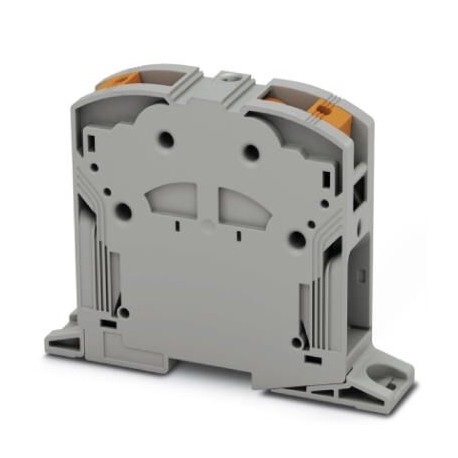

PHOENIX CONTACT PTPOWER 185 P-F PTPOWER 185 P-F 1054739 PHOENIX CONTACT High-current terminal block, with test socket, nom. voltage: 1500 V .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTPOWER 185 P-F 1054739 PHOENIX CONTACT High-current terminal block, with test socket, nom. voltage: 1500 V ..

PTPOWER 185 P-F

1054739

PHOENIX CONTACT

3 Pcs.

High-current terminal block, with test socket, nom. voltage: 1500 V DC / 1000 V AC, nominal current: 309 A, connection method: Power-Turn connection, number of connections: 2, number of positions: 1, cross section: 95 mm² - 185 mm², AWG: 3/0 - 350 kcmil, width: 31 mm, height: 108.3 mm, color: gray, mounting type: direct screw connection Power terminal block, with test socket, nominal voltage: 1000 V, nominal current: 309 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 95 mm² - 185 mm², mounting class: direct screwed, colour: grey

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1054739
Packing unit1 pc
Minimum order quantity3 pc
Catalog pagePage 141 (C-1-2019)
GTIN4055626690889
Weight per Piece (excluding packing)0.000 g
Custom tariff number85369010
Country of originPL (Poland)

Drawings

Dimensional drawing

Dimensional drawing

Circuit diagram

Circuit diagram

Back to top

General

Number of positions1
Number of levels1
Number of connections2
Potentials1
Nominal cross section150 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition11.21 W
Maximum load current309 A (with 150 mm² conductor cross section)
Nominal current IN309 A
Nominal voltage UN1500 V DC
1000 V AC
Open side panelNo
Back to top

Dimensions

Width31 mm
Length150 mm
Height108.3 mm
Hole diameter6.5 mm
Drill hole spacing137.2 mm
Pitch31 mm
Back to top

Connection data

Connection1 level
Connection methodPower-Turn connection
Stripping length40 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.95 mm²
Conductor cross section solid max.185 mm²
Conductor cross section AWG min.3/0
Conductor cross section AWG max.350 kcmil
Conductor cross section flexible min.95 mm²
Conductor cross section flexible max.185 mm²
Min. AWG conductor cross section, flexible3/0
Max. AWG conductor cross section, flexible350 kcmil
Conductor cross section flexible, with ferrule without plastic sleeve min.95 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.150 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.95 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.150 mm²
Cross section with insertion bridge solid min.95 mm²
Cross section with insertion bridge, solid max.150 mm²
Cross section with insertion bridge stranded min.95 mm²
Cross section with insertion bridge, stranded max.150 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.95 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve max.120 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.95 mm²
Cross section with insertion bridge stranded, with ferrule with plastic sleeve max.120 mm²
Internal cylindrical gageB14
Back to top

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 5.127141120
eCl@ss 6.027141100
eCl@ss 7.027141120
eCl@ss 8.027141120
eCl@ss 9.027141120
Back to top

ETIM

ETIM 4.0EC000897
ETIM 5.0EC000897
ETIM 6.0EC000897
ETIM 7.0EC000897
Back to top

UNSPSC

UNSPSC 6.0130211811
UNSPSC 7.090139121410
UNSPSC 1139121410
UNSPSC 12.0139121410
UNSPSC 13.239121410
UNSPSC 18.039121410
UNSPSC 19.039121410
UNSPSC 20.039121410
UNSPSC 21.039121410
Back to top

ETIM for 1054739 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 95 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 95 mm²
Connectable conductor cross section solid-core (EF007337) 95 mm²
Rated current In (EF008250) 309 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 31 mm
Height (EF000040) 150 mm
Depth (EF000049) 108.3 mm
Closing plate required (EF002525) No
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
