SPT 2,5/ 8-V-5,0-EX BD:PE,5,6 1701902 PHOENIX CONTACT PCB terminal block

SPT 2,5/ 8-V-5,0-EX BD:PE,5,6

1701902

PHOENIX CONTACT

50 Pcs.

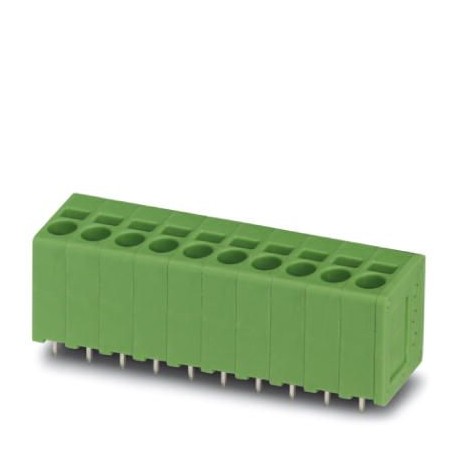

PCB terminal block Terminal block for printed circuit board, nominal current: 23 A, nominal section: 2.5 mm², Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, family of articles: SPT 2.5/.. -V-EX, pitch: 5mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 90°, color: green, Pin arrangement: Linear double pin arrangement, Pin length [P]: 2.5mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1701902
Packing unit1
GTIN4046356565455
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesSPT 2,5/..-V-EX
Pitch5 mm
Number of positions8
Connection methodPush-in spring connection
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections8
Number of potentials8

Connection capacity

Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Stripping length10 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]13.5 mm
Width [ w ]41.4 mm
Height [ h ]16.9 mm
Pitch5 mm
Height (without solder pin)14.4 mm
Solder pin [P]2.5 mm
Pin spacing8.2 mm
Pin dimensions0.8 x 0.8 mm
Dimension a35 mm

Dimensions for PCB design

Hole diameter1.1 mm
Pin spacing8.2 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Air clearances and creepage distances

Insulating material groupI

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
