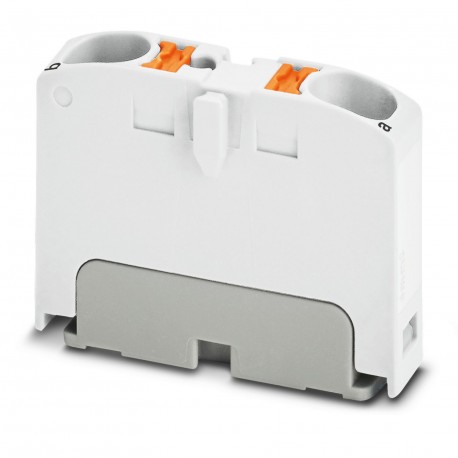

PHOENIX CONTACT PTFIX 2X4 WH PTFIX 2X4 WH 1028366 PHOENIX CONTACT Block for distribution, Terminal base, rated voltage: 450 V, nominal cu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTFIX 2X4 WH 1028366 PHOENIX CONTACT Block for distribution, Terminal base, rated voltage: 450 V, nominal cu..

PTFIX 2X4 WH

1028366

PHOENIX CONTACT

50 Pcs.

Block for distribution, Terminal base, rated voltage: 450 V, nominal current: 32 A, type of Connection: Connection push-in connection, number of connections: 2, section: 0,2 mm2-6 mm2, AWG: 24-10 width: 6.2 mm, height: 21,7 mm, color: white, assembly type: interlock adapter for rail Distribution block, Base terminal, nominal voltage: 800 V, nominal current: 32 A, number of connections: 2, connection type: Push-in connection, Dimensioning section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting class: interlock in rail adapter, Direct mounting with a flange, Aerial, color: white Monobloc, Basic terminal block, nominal voltage: 450 V, Number of connections: 2, Connection type: Push-in connection, Push-in connection, Reference section: 4 mm2, Cross-section: 0.2 mm2 - 6 mm2, Mounting type: Snap-on to profile adapter, Direct mounting with flange, Handwheel, colour: white

Automation > Feed-through terminal block
FIX block System

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypeValve block
Number of connections2
Number of rows1
Data Management Status
Revision of the article02
Insulation properties
Surge CategoryIII
Rated shock resistance voltage8 kV
Maximum power dissipation under nominal conditions1.02 W
Number of connections per floor2
Nominal cross-section4 mm²
AWG Assigned Section12
Stripping length10 mm ... 12 mm
TemplateA4
Connection according to the standardIEC 60998-2-2
Rated voltage450 V (according to IEC 60998-2-2)
Stripping length10 mm ... 12 mm
Connection according to the standardIEC 60947-7-1
Rigid conductor cross-section0.2 mm² ... 6 mm²
AWG conductor section24 ... 10 (conversion to IEC)
Soft conductor section0.2 mm² ... 4 mm²
Soft Conductor Section [AWG]24 ... 12 (IEC conversion)
Flexible conductor section (plastic sleeveless tip)0.2 mm² ... 4 mm²
Flexible conductor section (end cap with plastic sleeve)0.2 mm² ... 4 mm²
2 flexible conductors of the same cross-section with TWIN bit and plastic socket0.5 mm² ... 1 mm²
Int. name.32 A
Maximum Charging Current38 A (bei 6 mm² Leiterquerschnitt starr)
Maximum cumulative currentThe max. charging current of the individual connection points must not be exceeded.
Rated voltage800 V
NoteIEC 60947-7-1 applies only when fastening accessories are used.
Nominal cross-section4 mm²
Direct Plug Connection Section
Rigid conductor cross-section0.5 mm² ... 6 mm²
Rigid Conductor Section [AWG]20 ... 10 (conversion to IEC)
Flexible conductor section (plastic sleeveless tip)0.75 mm² ... 4 mm²
Flexible conductor section (end cap with plastic sleeve)0.5 mm² ... 4 mm²
Width6.2 mm
Height28.6 mm
Depth21.7 mm
Colorwhite (RAL 9010)
Flammability class according to UL 94V0
Insulation GroupI
Insulating materialPA
Use of Cold Static Insulation-60 °C
Relative temperature index of insulating material (Elec.; UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for railway vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface Flammability NFPA 130 (ASTM E 162)Successful
Specific Optical Flue Gas Density NFPA 130 (ASTM E 662)Successful
Flue Gas Toxicity NFPA 130 (SMP 800C)Successful
Shock Voltage Test
Set value indicator voltage9.8 kV
ResultSuccessful test
Warm-up test
Requirement for heating controlTemperature Rise ≤ 45 K
ResultSuccessful test
Short-term current resistance 4 mm²0.48 kA
Short-term current resistance 6 mm²0.72 kA
ResultSuccessful test
Dielectric strength at industrial frequency
Set value indicator voltage2 kV
ResultSuccessful test
Mechanical characteristics
Open sidewallNo
Mechanical strength
ResultSuccessful test
Attachment to the support
ResultSuccessful test
NoteWhen juxtaposing multiple blocks, the basic elements should be placed in such a way that a maximum of 2 blocks are hung freely between them. The flange elements must be installed every 6 blocks.
Depending on the use and mechanical load, it is also possible to choose other arrangements of the mounting accessories.
The PTFIX-NS35 DIN rail adapter is designed for up to 9 blocks.
Investigation of damage and loosening of conductors
Rotational speed10 RPM
Tours135
Conductor/Weight Section0.2 mm2/0.2 kg
4 mm2/0.9 kg
6 mm2/1.4 kg
ResultSuccessful test
Aging
Temperature Cycles192
ResultSuccessful test
Needle burner test
Time of action30 s
ResultSuccessful test
Wideband oscillations/crackles
Control SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectreCategory 2 service life test, on rotating frame
Frequencyf1= 5 Hz to f2= 250 Hz
ASD Level6.12 (m/s²)²/Hz
Acceleration3,12g
Inspection time per axis5 hours
Sense of controlX, Y, and Z Axes
ResultSuccessful test
Shocks
Control SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Shock formSemi-sinusoidal
Acceleration30g
Duration of shocks18 ms
Number of shocks in each direction3
Sense of controlX, Y and Z axes (pos. and neg.)
ResultSuccessful test
Environmental conditions
Ambient Temperature (Operating)-60 °C ... 110 °C (Operating temperature range, including self-heating, max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a limited period, no more than 24 hours, from -60 to +70 °C)
Ambient temperature (mounting)-5 °C ... 70 °C
Ambient temperature (confirmed)-5 °C ... 70 °C
Permissible humidity (operating)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Connection according to the standardIEC 60998-2-2
IEC 60947-7-1
Mounting TypeSnapping onto the profile adapter
Direct mounting with flange
Steering wheel

ETIM for 1028366 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 6.2 mm
Height (EF000040) 28.6 mm
Depth (EF000049) 21.7 mm
Closing plate required (EF002525) No
Colour (EF000007) White
Internally connected stages (EF002661) Yes
