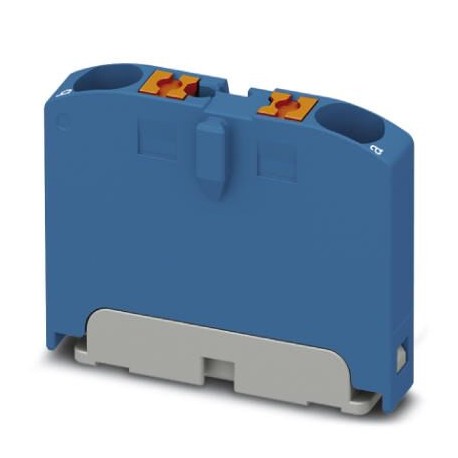

PHOENIX CONTACT PTFIX 2X2,5 BU PTFIX 2X2,5 BU 1028068 PHOENIX CONTACT Distribution block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTFIX 2X2,5 BU 1028068 PHOENIX CONTACT Distribution block

PTFIX 2X2,5 BU

1028068

PHOENIX CONTACT

50 Pcs.

Distribution block Distribution block, Base terminal, nominal voltage: 450 V, nominal current: 24 A, number of connections: 2, connection type: Push-in connection, cross-section: 0.14 mm² - 4 mm², mounting class: interlock in rail adapter, Direct mounting with a flange, Aerial, color: blue

Automation > Feed-through terminal block
FIX block System

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Distribution block, Basic terminal block, nom. voltage: 450 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 2, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, height: 21.7 mm, color: blue, mounting type: for snapping onto a DIN rail adapter

Key Commercial Data

Orderkey1028068
Packing unit50 pc
Minimum order quantity50 pc
GTIN4055626524801
Weight per Piece (excluding packing)3.330 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels1
Number of connections2
Potentials1
Nominal cross section2.5 mm²
Colorblue
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W
Maximum load current32 A
Nominal current IN24 A
Nominal voltage UN450 V
Open side panelNo

Dimensions

Width5.2 mm
Length28.6 mm
Height21.7 mm

Connection data

Connection methodPush-in connection
Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 60998-2-2
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.12
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Internal cylindrical gageA3

Standards and Regulations

Connection in acc. with standardIEC 60998-2-2
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1028068 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 450 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 5.2 mm
Height (EF000040) 28.6 mm
Depth (EF000049) 21.7 mm
Closing plate required (EF002525) No
Colour (EF000007) Blue
Internally connected stages (EF002661) Yes
