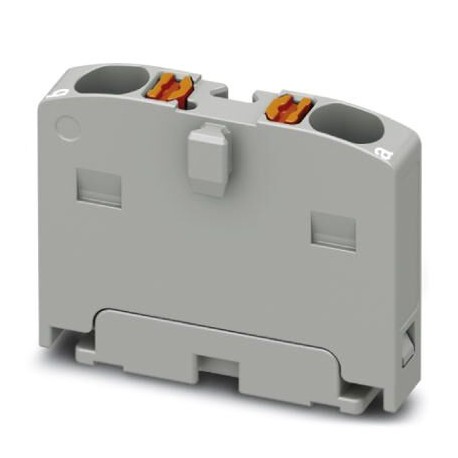

PHOENIX CONTACT PTFIX 2X1,5 GY PTFIX 2X1,5 GY 1045923 PHOENIX CONTACT Distribution block, Basic terminal block, nom. voltage: 450 V, nomina.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTFIX 2X1,5 GY 1045923 PHOENIX CONTACT Distribution block, Basic terminal block, nom. voltage: 450 V, nomina..

PTFIX 2X1,5 GY

1045923

PHOENIX CONTACT

50 Pcs.

Distribution block, Basic terminal block, nom. voltage: 450 V, nominal current: 17.5 A, connection method: Push-in connection, number of connections: 2, cross section: 0.14 mm² - 2.5 mm², AWG: 26 - 14, width: 4.2 mm, height: 17.7 mm, color: gray, mounting type: for snapping onto a DIN rail adapter Distribution block, Base terminal, nominal voltage: 450 V, nominal current: 17.5 A, number of connections: 2, connection type: Push-in connection, cross-section: 0.14 mm² - 2.5 mm², mounting class: interlock in rail adapter, Direct mounting with a flange, Aerial, color: gray

Automation > Feed-through terminal block
FIX block System

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Distribution block, Basic terminal block, nom. voltage: 450 V, nominal current: 17.5 A, connection method: Push-in connection, number of connections: 2, cross section: 0.14 mm² - 2.5 mm², AWG: 26 - 14, width: 4.2 mm, height: 17.7 mm, color: gray, mounting type: for snapping onto a DIN rail adapter

Dimensions

Width4.2 mm
Length21.6 mm
Height17.7 mm

Connection data

Connection methodPush-in connection
Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 60998-2-2
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Internal cylindrical gageA1 / B1

Standards and Regulations

Connection in acc. with standardIEC 60998-2-2
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

eCl@ss

eCl@ss 4.027141120
eCl@ss 4.127141120
eCl@ss 5.027141120
eCl@ss 5.127141120
eCl@ss 6.027141100
eCl@ss 7.027141120
eCl@ss 8.027141120
eCl@ss 9.027141120

ETIM

ETIM 2.0EC000897
ETIM 3.0EC000897
ETIM 4.0EC000897
ETIM 5.0EC000897
ETIM 6.0EC000897
ETIM 7.0EC000897

UNSPSC

UNSPSC 6.0130211811
UNSPSC 7.090139121410
UNSPSC 1139121410
UNSPSC 12.0139121410
UNSPSC 13.239121410

ETIM for 1045923 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 17.5 A
Rated voltage (EF000228) 450 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 4.2 mm
Height (EF000040) 21.6 mm
Depth (EF000049) 17.7 mm
Closing plate required (EF002525) No
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
