PTFIX 12X4-NS35 BK 3273562 PHOENIX CONTACT Distribution block

PTFIX 12X4-NS35 BK

3273562

PHOENIX CONTACT

8 Pcs.

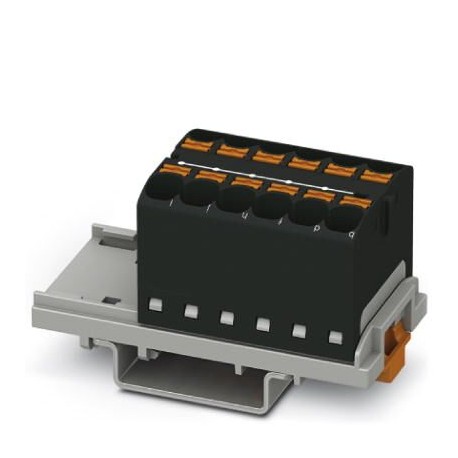

Distribution block Distribution block, Vertically aligned block, rated voltage: 800 V, rated current: 32 A, number of connections: 12, connection type: Push-in connection, cross-section: 0.2 mm² - 6 mm², mounting class: NS 35/7.5, NS 35/15, color: black

Automation > Feed-through terminal block
FIX block System

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Distribution block, Block with vertical alignment, The blocks can be bridged with one another via the conductor shaft. For corresponding plug-in bridges, see accessories, nom. voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, number of connections: 12, cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 28.6 mm, color: black, mounting type: NS 35/7,5, NS 35/15

Key Commercial Data

Orderkey3273562
Packing unit8 pc
Minimum order quantity8 pc
NoteMade to Order (non-returnable)
GTIN4055626646275
Weight per Piece (excluding packing)22.220 g
Custom tariff number85369010
Country of originPL (Poland)

General

NoteNotes on operation The blocks can be bridged with one another via the conductor shaft. For corresponding plug-in bridges, see accessories
Number of levels1
Number of connections12
Potentials1
Nominal cross section4 mm²
Colorblack
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.02 W (the value is based on one connection block and is multiplied according to the pin assignment)
Ambient temperature (operation)-60 °C ... 130 °C
Maximum load current41 A
Maximum total current63 A
Nominal current IN32 A
Nominal voltage UN800 V
Open side panelNo

Dimensions

Width28.6 mm
Length58.1 mm
Height NS 35/7,532.4 mm
Height NS 1530.4 mm

Connection data

Connection methodPush-in connection
Stripping length10 mm ... 12 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Internal cylindrical gageA4

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3273562 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 12
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 28.6 mm
Height (EF000040) 58.1 mm
Depth (EF000049) 30.4 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
Internally connected stages (EF002661) Yes
