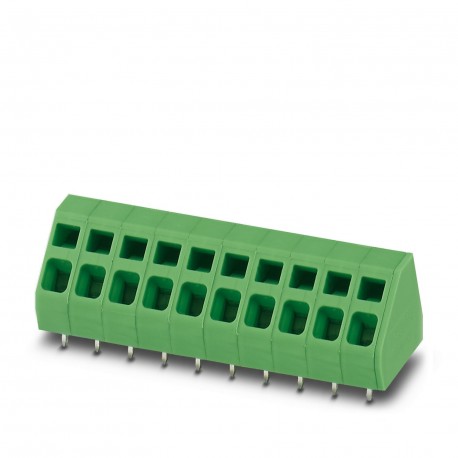

ZFKDSA 2,5-5,08- 3 EX 2RZ 1705934 PHOENIX CONTACT Terminal block for printed circuit board, pitch: 5.08 mm, ..
ZFKDSA 2,5-5,08-3 EX 2RZ
1705934
PHOENIX CONTACT
50 Pcs.
Terminal block for printed circuit board, pitch: 5.08 mm, number of poles: 3, connection type: Spring connection, mounting: Wave soldering, color: green
Printed circuit board terminal block, nominal current: 22 A, nominal cross-section: 2.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: ZFKDS(A) 2.5-EX, pitch: 5.08 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed
PCB terminal block, rated current: 22 A, nominal cross-section: 2.5 mm2, number of potentials: 3, number of rows: 1, number of poles per row: 3, product series: ZFKDS(A) 2.5-EX, pitch: 5.08 mm, connection type: Spring connection, mounting: wave soldering, conductor/board connection direction: 45 °, colour: green, Pin layout: linear pinning, Pin Length [P]: 3.5mm, Number of Solder Pins Per Potential: 2, Package Type: Packed in Carton
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PCB terminal block, pitch: 5.08 mm, number of positions: 3, connection method: Spring-cage connection, mounting: Wave soldering, color: green
Your advantages
Defined contact force ensures that contact remains stable over the long termClamping space opened by means of fixed screwdriver enables convenient conductor connectionAngled connection enables multi-row arrangement on the PCBSatisfies the more stringent safety requirements of “Ex e” protection according to IEC 60079-7 for potentially explosive areasThe latching on the side enables various numbers of positions to be combinedTwo solder pins reduce the mechanical strain on the soldering spots
General
| Range of articles | ZFKDS(A) 2,5-EX |
|---|---|
| Nominal cross section | 2.5 mm² |
| Solder pin surface | Sn |
| Number of positions | 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | 27260701 |
| eCl@ss 5.0 | 27260701 |
| eCl@ss 5.1 | 27260701 |
| eCl@ss 6.0 | 27261101 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
UNSPSC
| UNSPSC 6.01 | 30211801 |
|---|---|
| UNSPSC 7.0901 | 39121432 |
| UNSPSC 11 | 39121432 |
| UNSPSC 12.01 | 39121432 |
| UNSPSC 13.2 | 39121432 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 17.7 mm |
| Number of electrical connections (EF008252) | 3 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 22 A |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 4 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
