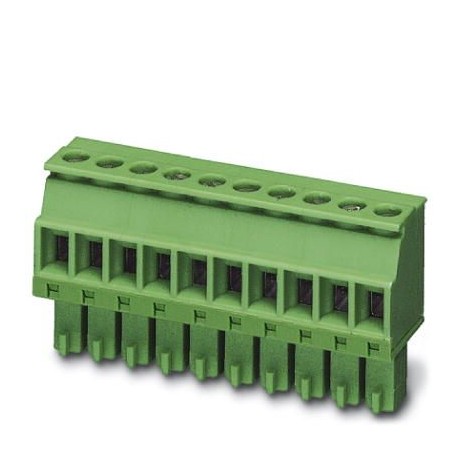

PHOENIX CONTACT MCVR 1,5/10-ST-3,81 BD:X132 MCVR 1,5/10-ST-3,81 BD:X132 1710495 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCVR 1,5/10-ST-3,81 BD:X132 1710495 PHOENIX CONTACT Printed-circuit board connector

MCVR 1,5/10-ST-3,81 BD:X132

1710495

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1710495
Packing unit1
GTIN4055626157528
Custom tariff number85366990

Dimensions

Length [ l ]10.4 mm
Width [ w ]38.89 mm
Height [ h ]19.1 mm
Pitch3.81 mm
Dimension a34.29 mm

General

Range of articlesMCVR 1,5/..-ST
Number of positions10
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated voltage (III/2)160 V
Nominal current IN8 A
Nominal cross section1.5 mm²
Flammability rating according to UL 94V0

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
