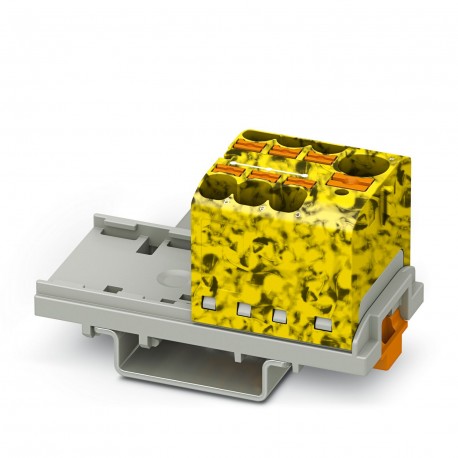

PTFIX 10/6X4-NS35-FE

3273612

PHOENIX CONTACT

8 Pcs.

Block for distribution, rated voltage: 450 V, nominal current: 32 A, type of Connection: Connection push-in Connection push-in connection, number of connections: 7, section: 0,2 mm2-6 mm2, AWG: 24-10, width: 28.6 mm, color: black/yellow, type of mounting: NS 35/7,5, NS 35/15 Distribution block, rated voltage: 800 V, rated current: 57 A, number of connections: 7, connection type: Push-in connection, Collective connection, Sizing cross-section: 10 mm², cross-section: 0.5 mm² - 10 mm², Push-in connection, Shunt, Sizing cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting class: NS 35/7.5, NS 35/15, color: black/yellow Distributor block, rated voltage: 800 V, rated current: 41 A, number of connections: 7, connection type: Push-in connection, Socket, Dimensioning cross-section: 4 mm2, cross-section: 0.2 mm2 - 6 mm2, Push-in connection, Collective connection, Dimensioning section: 10 mm2, cross-section: 0.5 mm2 - 10 mm2, mounting type: NS 35/7.5, NS 35/15, colour: black/yellow

Automation > Feed-through terminal block
FIX block System

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
General notes
noteThe maximum load current of the individual connection points must not be exceeded.
For power distribution applications, IEC 60364-4-43:2008, as amended + Corrigendum Ott. 2008 (DIN VDE 0100-430:2010-10) section 433.2 ff!
Article features
Product TypeDistribution terminal
Number of connections7
Number of rows1
Potential1
Data maintenance status
Article review01
Insulation characteristics
Overvoltage CategoryIii
Degree of pollution3
Electrical characteristics
Sizing Impulse Voltage6 kV
Maximum power dissipation under nominal conditions1.02 W
Connection data
FeedingYes
Number of connections per plan7
Nominal cross-section4 mm²
AWG Sizing Section10
Grip
Length of the section to be stripped10 mm ... 12 mm
Gauge PadA4
Standard-compliant connectionIEC 60947-7-1
Rigid conductor cross-section0.2 mm² ... 6 mm²
Conductor cross-section AWG24 ... 10 (converted according to IEC)
Flexible conductor cross-section0.2 mm² ... 4 mm²
Flexible conductor cross-section [AWG]24 ... 12 (converted according to IEC)
Flexible conductor cross-section (cable lug without insulation collar)0.2 mm² ... 4 mm²
Flexible conductor cross-section (plastic lug and collar)0.2 mm² ... 4 mm²
2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar0.5 mm² ... 1 mm²
Rated current41 A
Maximum load current41 A (with 6 mm² conductor connection)
Maximum cumulative current63 A
Nominal voltage800 V
Nominal cross-section4 mm²
Collective connection
Length of the section to be stripped12 mm ... 14 mm
Standard-compliant connectionIEC 60947-7-1
Rigid conductor cross-section0.5 mm² ... 10 mm²
Conductor cross-section AWG24 ... 10 (converted according to IEC)
Flexible conductor cross-section0.5 mm² ... 10 mm²
Flexible conductor cross-section [AWG]24 ... 12 (converted according to IEC)
Flexible conductor cross-section (cable lug without insulation collar)0.5 mm² ... 10 mm²
Flexible conductor cross-section (plastic lug and collar)0.5 mm² ... 10 mm²
2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar0.75 mm² ... 2.5 mm²
Rated current57 A
Maximum load current57 A (with a conductor cross-section of 10 mm²)
Maximum cumulative current63 A (The maximum load current of the individual connection points must not be exceeded.)
Nominal voltage800 V
Nominal cross-section10 mm²
Socket Direct plug-in connection sections
Rigid conductor cross-section0.5 mm² ... 6 mm²
Solid conductor cross-section [AWG]20 ... 10 (converted according to IEC)
Flexible conductor cross-section (cable lug without insulation collar)0.75 mm² ... 4 mm²
Flexible conductor cross-section (plastic lug and collar)0.5 mm² ... 4 mm²
Collective connection Direct pluggable connection sections
Rigid conductor cross-section1.5 mm² ... 10 mm²
Flexible conductor cross-section (cable lug without insulation collar)2.5 mm² ... 10 mm²
Flexible conductor cross-section (plastic lug and collar)1 mm² ... 10 mm²
dimensions
width28.6 mm
height58.1 mm
Depth on NS 1530.4 mm
Depth on NS 35/7.532.4 mm
Material information
Colormulticoloured
black (RAL 9005)
yellow (RAL 1018)
Combustibility class according to UL 94V0
Insulation Material GroupThe
Insulation materialPA
Cold static insulation material insert-60 °C
Temperature index for insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Insulation Material Relative Temperature Index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Heat development calorimetric cone NFPA 130 (ASTM E 1354)28 MJ/kg
Surface Flammability NFPA 130 (ASTM E 162)Exceeded
NFPA 130 (ASTM E 662) Specific Optical Density of FumesExceeded
NFPA 130 Fume Toxicity (SMP 800C)Exceeded
Electrical Controls
Impulse voltage test
Test voltage rated value9.8 kV
ResultTest passed
Ambient Temperature Test
Heating verification requirementTemperature rise ≤ 45 K
ResultTest passed
Short-term current resistance 10 mm²1.2 kA
ResultTest passed
Dielectric strength at mains frequency
Test voltage rated value2 kV
ResultTest passed
Mechanical characteristics
Mechanical data
Open side wallno
Mechanical Controls
Mechanical resistance
ResultTest passed
Mounting on the stand
Support rail/fixing supportNS 35/NS 15
Test force rated value5 N
ResultTest passed
noteWhen sequencing multiple blocks, it is recommended that a DIN rail adapter be placed under the connection point or a flanged element between the blocks for each block.
For variants with 6 or 7 connections, simply insert a DIN rail adapter centrally to each block and the flange elements every two blocks.
When using the PTFIX-NS35 DIN rail adapter, an aligned block can only be stacked in half.
Conductor Integrity and Stability Test
Rotational speed10 rpm
Turns135
Conductor cross-section/weight0.5 mm2/0.3 kg
10 mm2/2 kg
ResultTest passed
Conductor Integrity and Stability Test
Rotational speed10 rpm
Turns135
Conductor cross-section/weight0.2 mm2/0.2 kg
4 mm2/0.9 kg
6 mm2/1.4 kg
ResultTest passed
Environmental and electrical life conditions
Aging
Temperature Cycling192
ResultTest passed
Needle flame test
Duration of application30 s
ResultTest passed
Broadband vibration/noise
Test SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumCategory 2 Electrical Life Check, Trolley Mounted
Frequencyf1= 5 Hz up to f2= 250 Hz
ASD Level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axle5 h
Test DirectionsX, Y, and Z axis
ResultTest passed
Shock
Test SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Shock FormSemi-sinusoidal
Acceleration30g
Shock Duration18 ms
Number of shocks per direction3
Test DirectionsX, Y and Z axis (pos. and neg.)
ResultTest passed
Environmental conditions
Ambient temperature (operating)-60 °C ... 110 °C (Operating temperature range including self-heating, short-term maximum operating temperature cf. RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for short duration, no longer than 24 h, -60 °C to +70 °C)
Ambient temperature (mounting)-5 °C ... 70 °C
Ambient Temperature (Activation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Regulations and requirements
Standard-compliant connectionIEC 60947-7-1
IEC 60947-7-1
Montage
Mounting typeNS 35/7.5
NS 35/15

ETIM for 3273612 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 7
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 28.6 mm
Height (EF000040) 58.1 mm
Depth (EF000049) 30.4 mm
Closing plate required (EF002525) No
Colour (EF000007) Multi colour
Internally connected stages (EF002661) Yes
