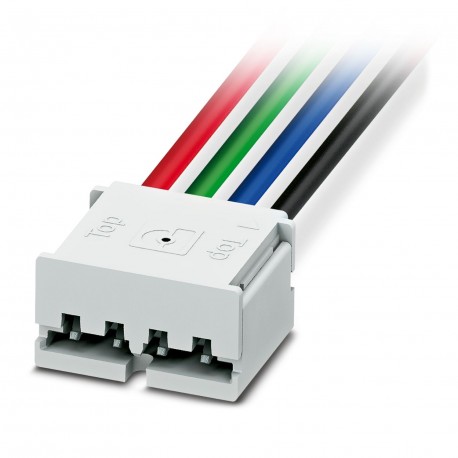

PHOENIX CONTACT PTF 0,3/ 4-WB-10-H PTF 0,3/ 4-WB-10-H 1707565 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTF 0,3/ 4-WB-10-H 1707565 PHOENIX CONTACT Printed-circuit board connector

PTF 0,3/ 4-WB-10-H

1707565

PHOENIX CONTACT

20 Pcs.

Printed-circuit board connector Ready-made printed circuit board connectors Assembled PCB connector

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeAssembled PCB connector
Product familyPTF 0,3/..-WB-H
Product lineCOMBICON Connectors Special
Number of positions4
Pitch2.40 mm
Number of connections4
Number of rows1
Number of potentials4
Data management status
Article revision01
Electrical properties
Nominal voltage UN< 25 V
Rated voltage (III/3)25 V
Rated voltage (III/2)25 V
Mounting
Mounting typeDirect plug-in method
Notes
Note regarding documentationRefer to the installation note in the download area.
Dimensions
Dimensional drawingedyvovzxrs.jpg
Pitch2.40 mm
Length [l]9.00 mm
Mechanical tests
Tensile strength of crimp connections
ResultTest passed
Electrical tests
Temperature-rise test
SpecificationIEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Insulation resistance
SpecificationIEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03
Insulation resistance, neighboring positions> 1 MΩ
Air clearances and creepage distances
SpecificationIEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03
Insulating material groupIIIa
Rated insulation voltage (III/3)25 V
Rated insulation voltage (III/2)25 V
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 500 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60695-2-11:2000-10
Temperature650 °C
Time of exposure30 s
Ambient conditions
Ambient temperature (operation)-30 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Connector
Connection 1
Insulating materialPBT
CTI according to IEC 60112275
