View larger
Images are for illustrative purposes only. Please refer to data sheet for details

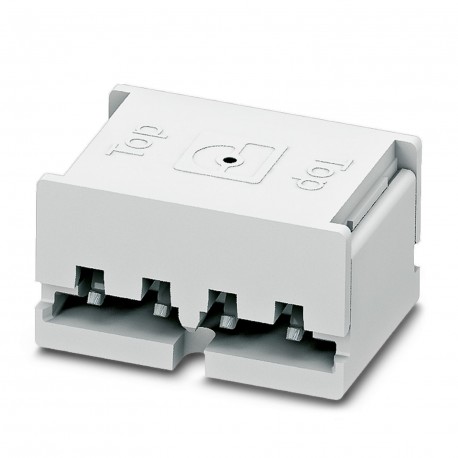

PTF 0,3/ 4-BB-8-H 1707559 PHOENIX CONTACT Printed-circuit board connector
PTF 0,3/ 4-BB-8-H
1707559
PHOENIX CONTACT
25 Pcs.
Printed-circuit board connector
Direct connector for printed circuit board, nominal section: 0.34 mm², color: white, nominal voltage (III/2): 25 V, contact surface: Tin, contact connection type: Female, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: PTF 0.3/.. -BB-H, pitch: 1.9 mm, mounting: Direct plug-in connection technology, plug-in system: COMBICON PTF, packaging type: box-packed, For flexible printed circuit boards with a width of 8 mm and a permissible printed circuit board thickness in the contact range of 0.15 mm ... 0.3 mm
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1707559 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| GTIN | 4046356934237 |
| Weight per Piece (excluding packing) | 1.910 g |
| Custom tariff number | 85366930 |
| Country of origin | PL (Poland) |
General
| Range of articles | PTF 0,3/..-BB-H |
|---|---|
| Number of positions | 4 |
| Insulating material group | IIIa |
| Rated voltage (III/3) | < 25 V |
| Rated voltage (III/2) | 25 V |
| Nominal cross section | 0.34 mm² |
| Maximum load current | 10 A (Total current of all contacts) |
| Insulating material | PBT |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
